Add a Kaplan-Meier curve layer

Adds the curve layer to a TTE plot: a Kaplan-Meier step curve with a confidence band, computed from the fit already contained within the plot object.

Usage

er_tte_add_curve(object, style = NULL, ...)

Arguments

object

Partially constructed plot (has S3 class er_tte).

style

Style used to draw the Kaplan-Meier curve and ribbon. Can either be a string corresponding to one of the registered style labels (e.g., "km", the default), or a builder function used to compute the relevant plot object (see "Styles" below).

...

Additional named arguments forwarded to the style builder function when the plot is built.

Value

The input object, with the curve layer added.

Styles

The following pre-defined styles are available for this layer. Please see the documentation for the corresponding builder function to see what customisation options are available:

Label	Builder	Description
"km"	er_style_tte_curve_km()	Kaplan-Meier step curve with a confidence band (the only built-in, and the default).

See er_style_tte() for details on how style builder functions are defined for the TTE mini-grammar, should a custom style be required.

See also

er_tte(), er_style_tte_curve_km()

Examples

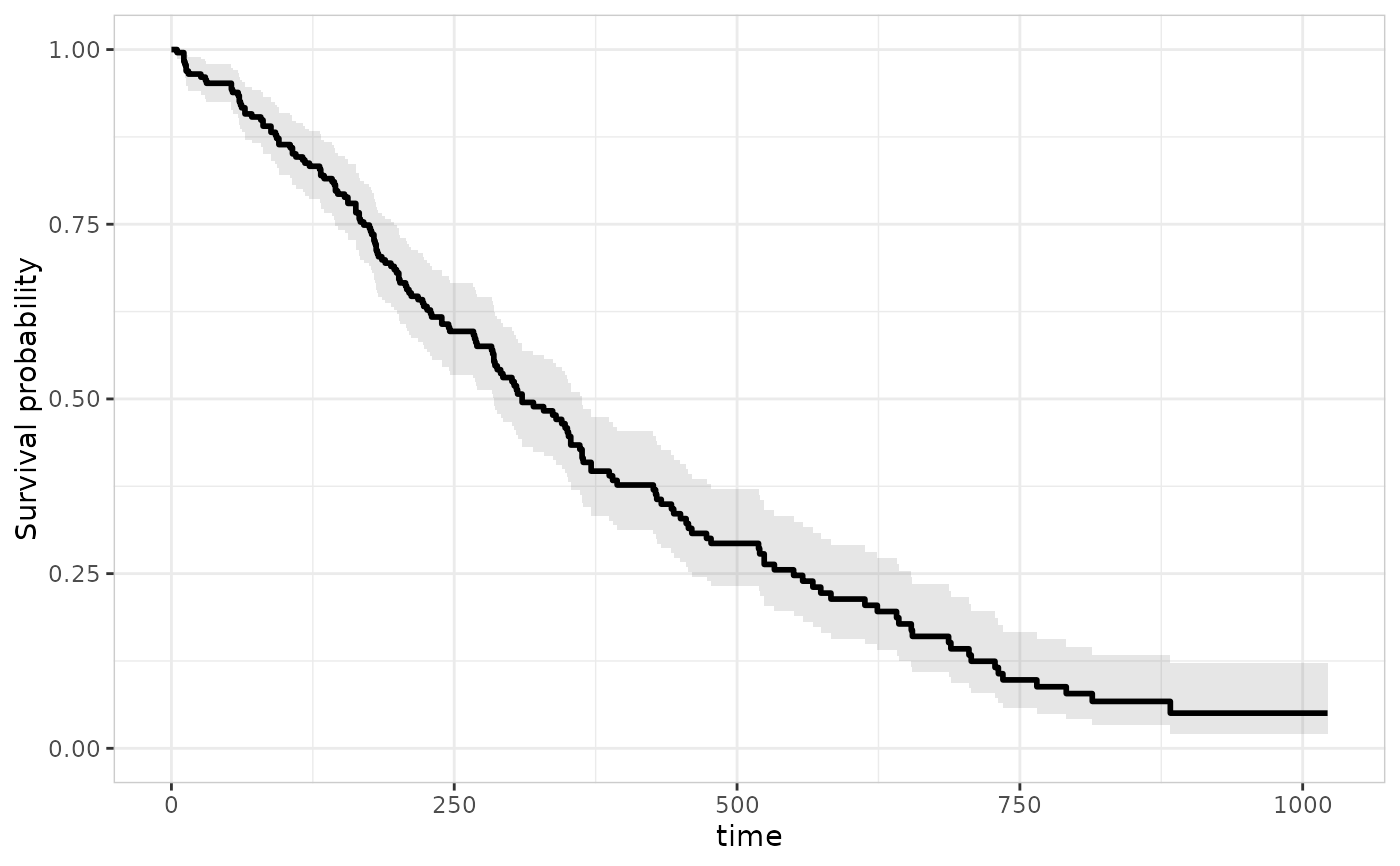

library(survival)
lung |>
  er_tte(time, status == 2) |>
  er_tte_add_curve() |>
  plot()

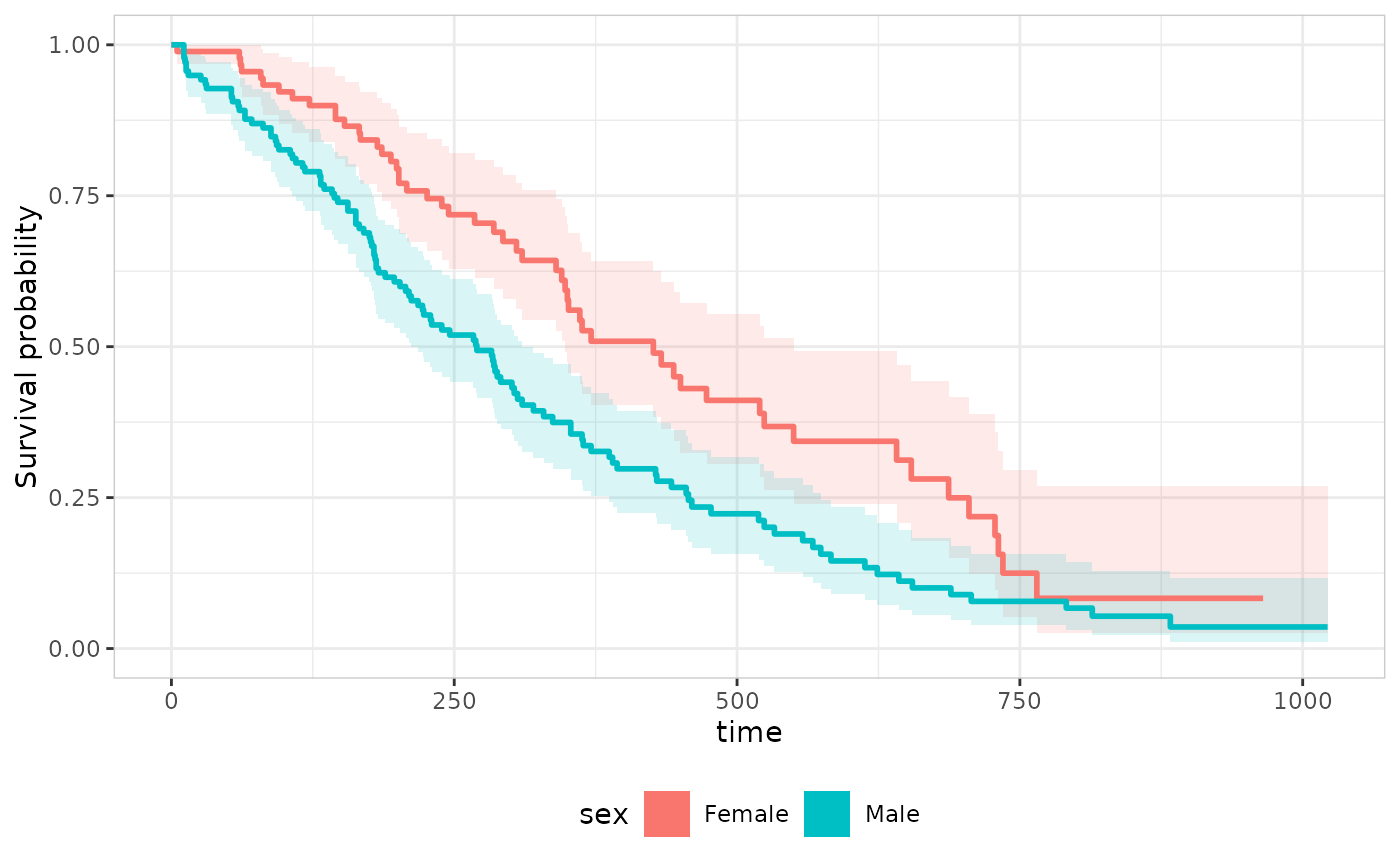

lung |>
  transform(sex = factor(sex, labels = c("Male", "Female"))) |>
  er_tte(time, status == 2, stratify_by = sex) |>
  er_tte_add_curve() |>
  plot()
