Theming erplots

Source: vignettes/articles/theming.Rmd
theming.Rmd

The goal of this article is to discuss the er_plot_theme() function, used to control the surface appearance of plots. In contrast to the er_plot_add_*() functions and their associated builder functions, which can change substantive features of the plot, the role of er_plot_theme() is to control labels, axis limits, palettes, plot titles, and other thematic aspects to the plot.

library(erplots)
library(erglm)

mod <- erglm_model(ae1 ~ aucss, erglm_data, family = binomial())
mod_strat <- erglm_model(ae1 ~ aucss + sex, erglm_data, family = binomial())
mod_gaussian <- erglm_model(biomarker_change ~ aucss, erglm_data, family = gaussian())

Every example below reuses the same stratified plot:

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  plot()

er_plot_theme() slots into the same pipeline anywhere after er_plot() – its arguments are read lazily at build time, so it doesn’t matter whether it comes before or after the layer functions. Every argument defaults to NULL, meaning “leave whatever was set before unchanged”.

Labels

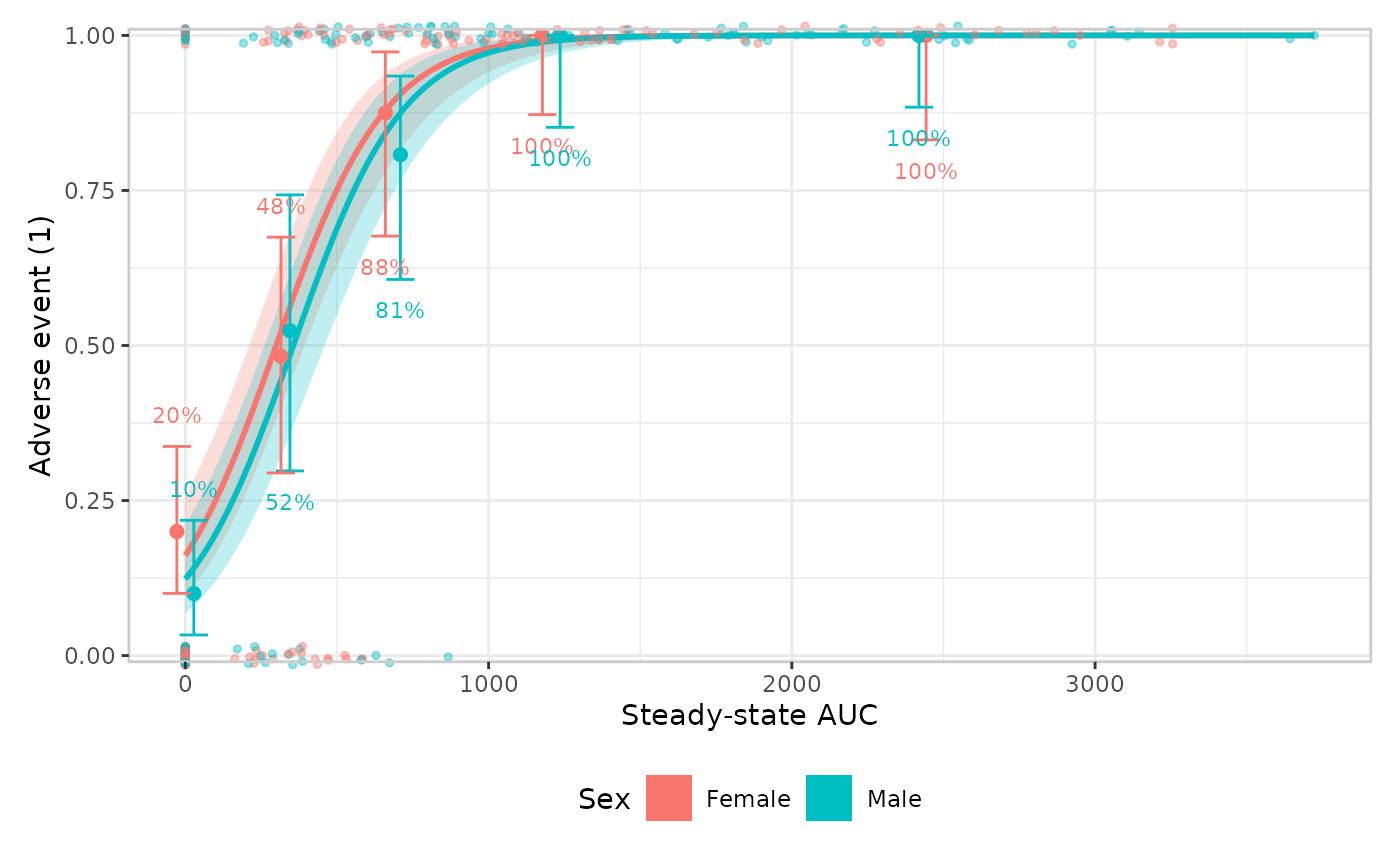

xlab/ylab relabel the exposure/response axes; strata_lab relabels the stratification legend (this errors if stratify_by wasn’t set in er_plot() – there’s no legend to label):

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_theme(
    xlab = "Steady-state AUC",
    ylab = "Adverse event (1)",
    strata_lab = "Sex"
  ) |>
  plot()

Plot-level text

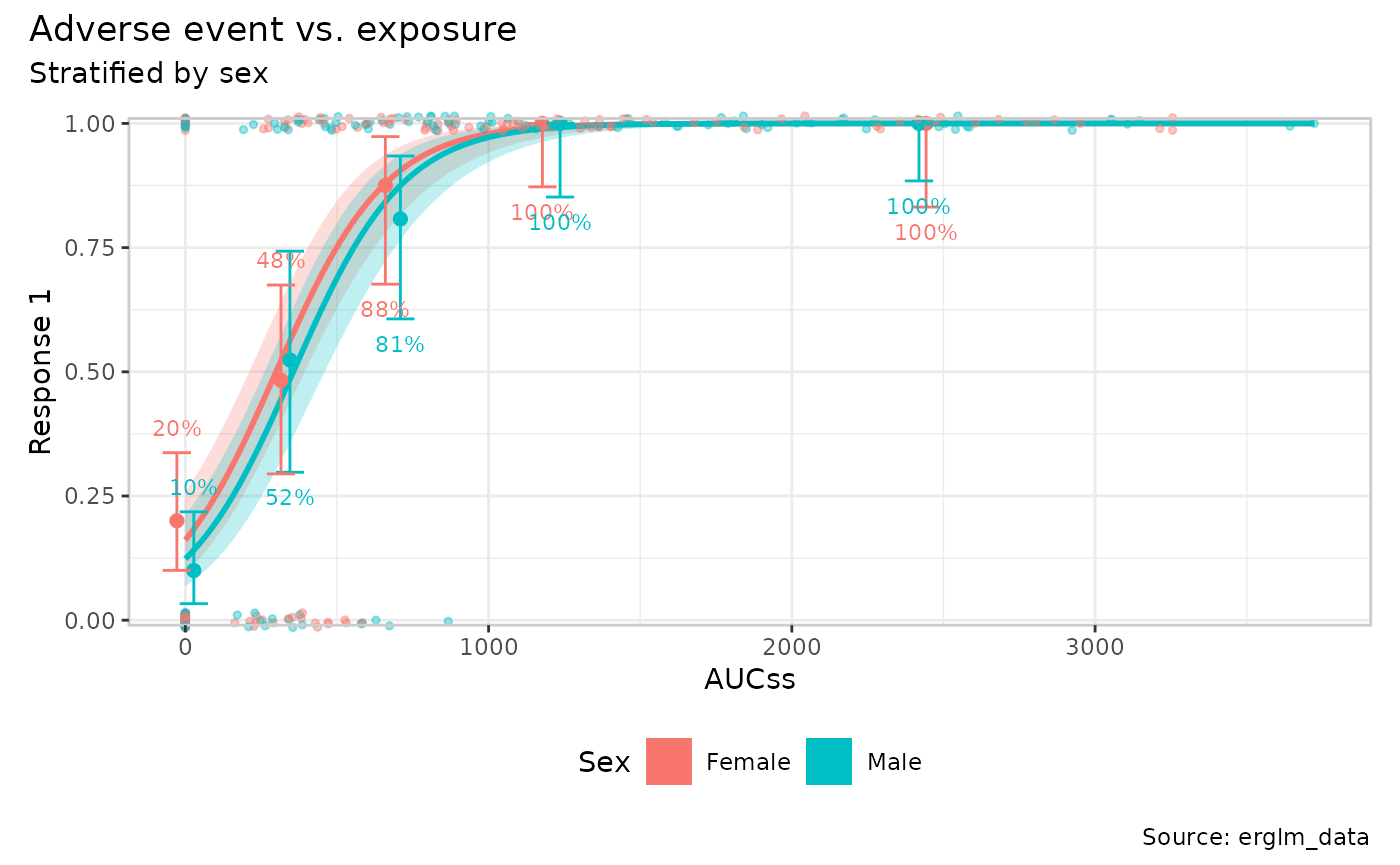

title/subtitle/caption add the usual plot-level annotations, via patchwork::plot_annotation():

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_theme(
    title = "Adverse event vs. exposure",
    subtitle = "Stratified by sex",
    caption = "Source: erglm_data"
  ) |>
  plot()

Axis limits

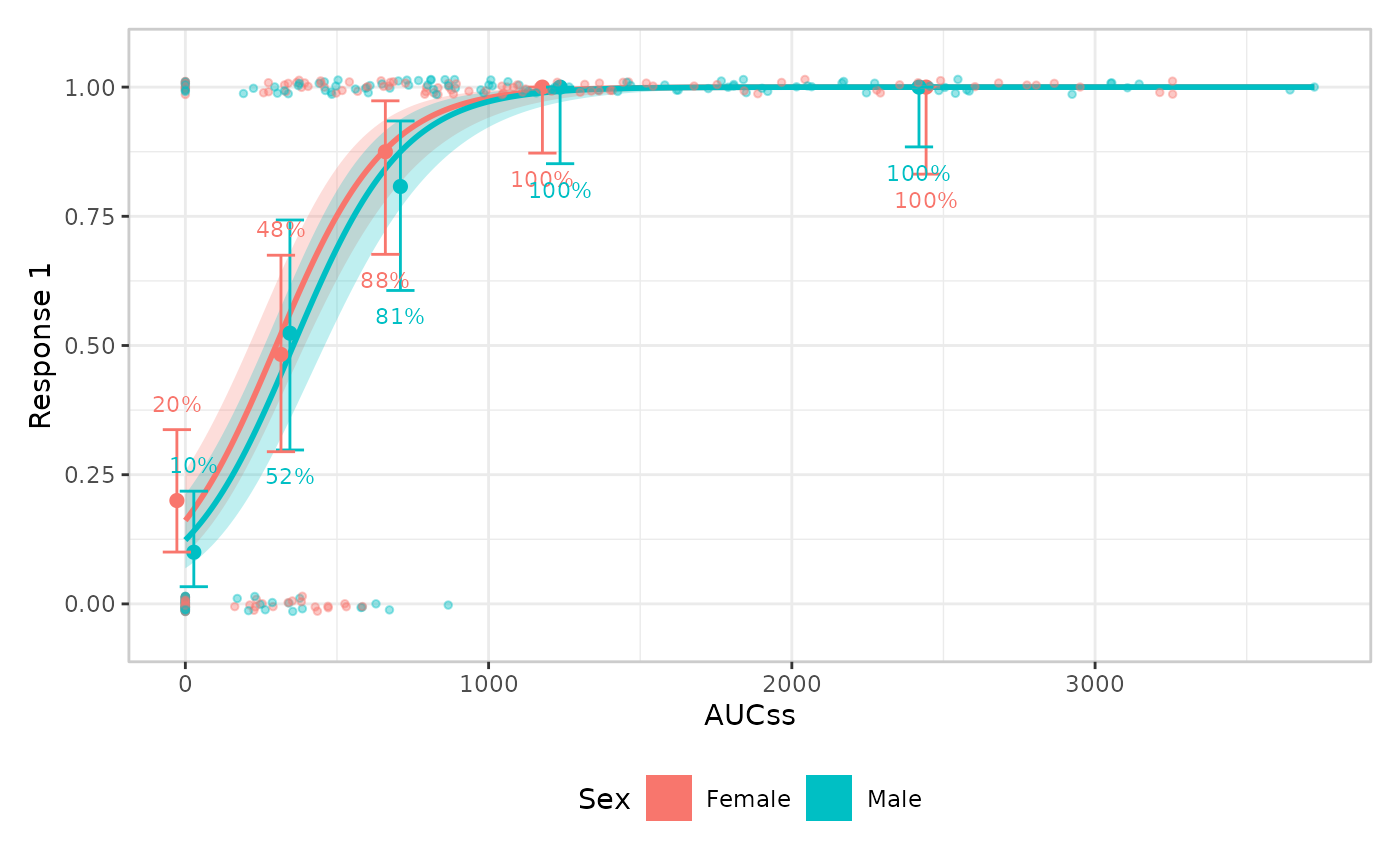

xlim/ylim override the exposure/response axis limits that er_plot() otherwise computes automatically from the data:

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_theme(ylim = c(-0.1, 1.1)) |>
  plot()

Visual theme

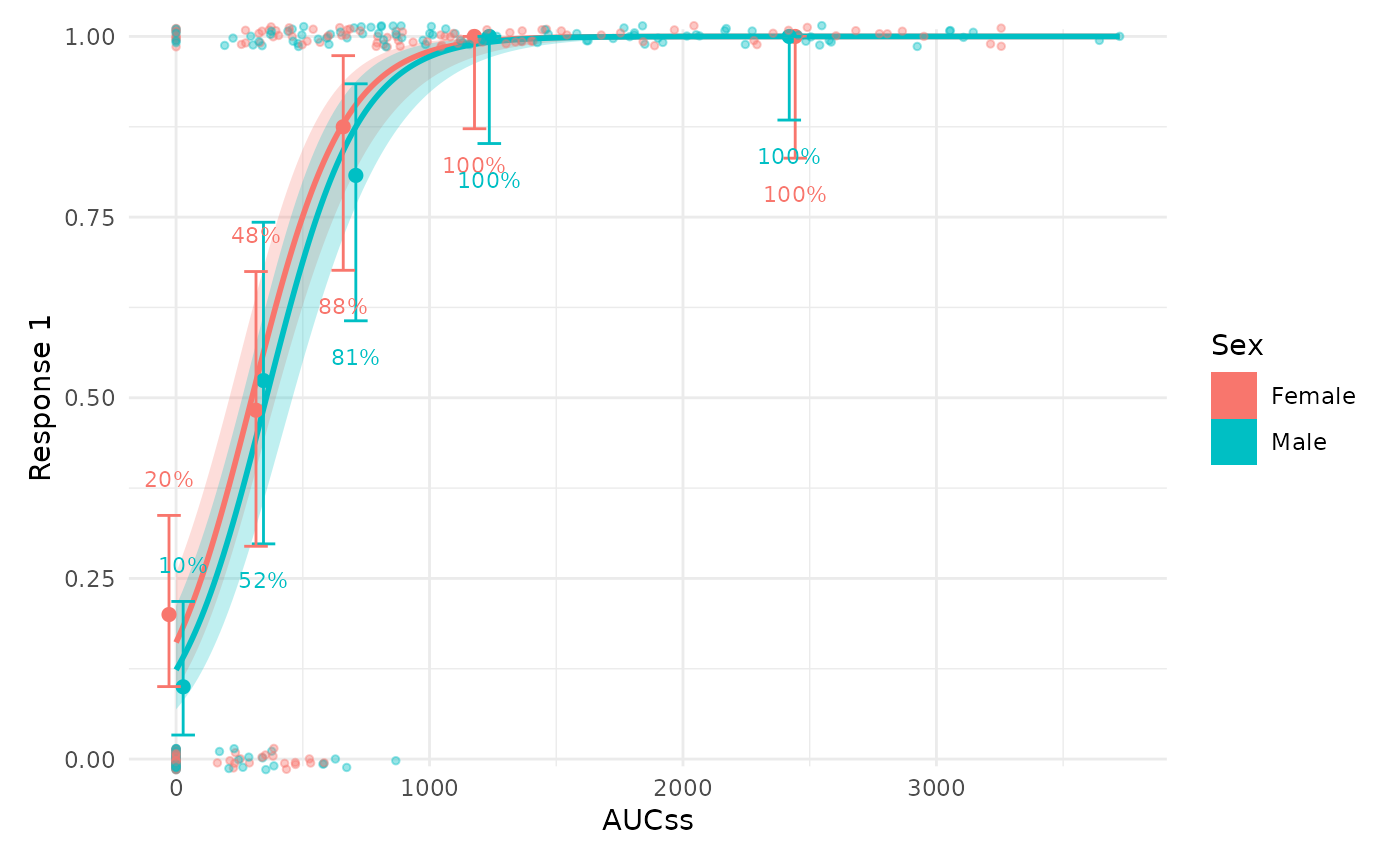

theme_base swaps out the overall ggplot2 theme (default ggplot2::theme_bw()); theme_extra replaces the small set of additional tweaks erplots applies on top (by default, a panel border plus legend.position = "bottom"). Supplying theme_extra replaces that default rather than adding to it, so re-include anything you want to keep:

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_theme(
    theme_base = ggplot2::theme_minimal(),
    theme_extra = ggplot2::theme(legend.position = "right")
  ) |>
  plot()

Discrete colour/fill palette

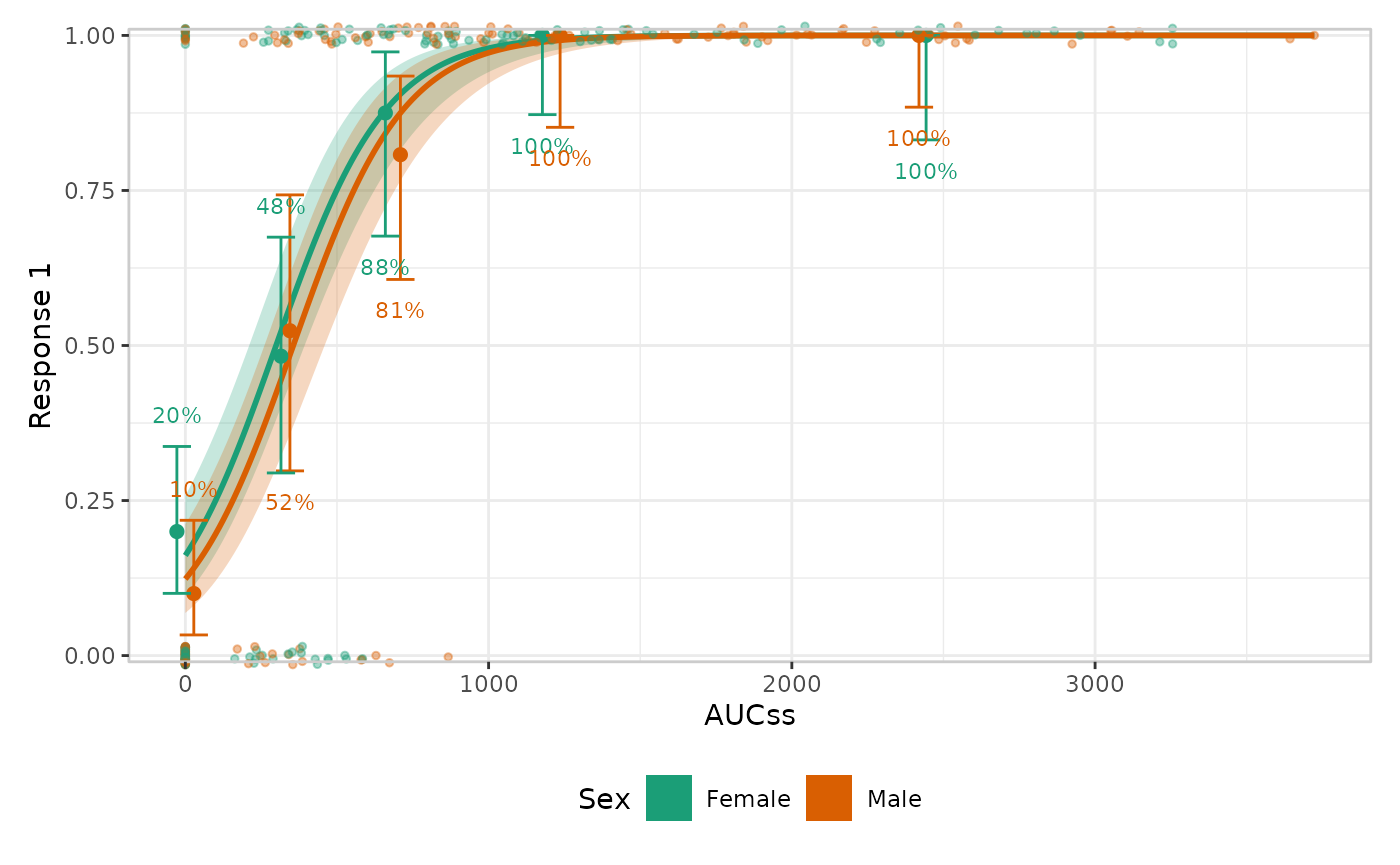

color_discrete/fill_discrete take a discrete ggplot2 scale object (e.g. from ggplot2::scale_colour_brewer() or ggplot2::scale_colour_viridis_d()) and apply it wherever colour/fill is genuinely mapped to the stratification variable:

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_theme(
    color_discrete = ggplot2::scale_colour_brewer(palette = "Dark2"),
    fill_discrete = ggplot2::scale_fill_brewer(palette = "Dark2")
  ) |>
  plot()

color_discrete/fill_discrete are left alone wherever colour/fill means something other than strata – e.g. er_style_data_hex()’s density fill, below.

Stratified quantile spacing

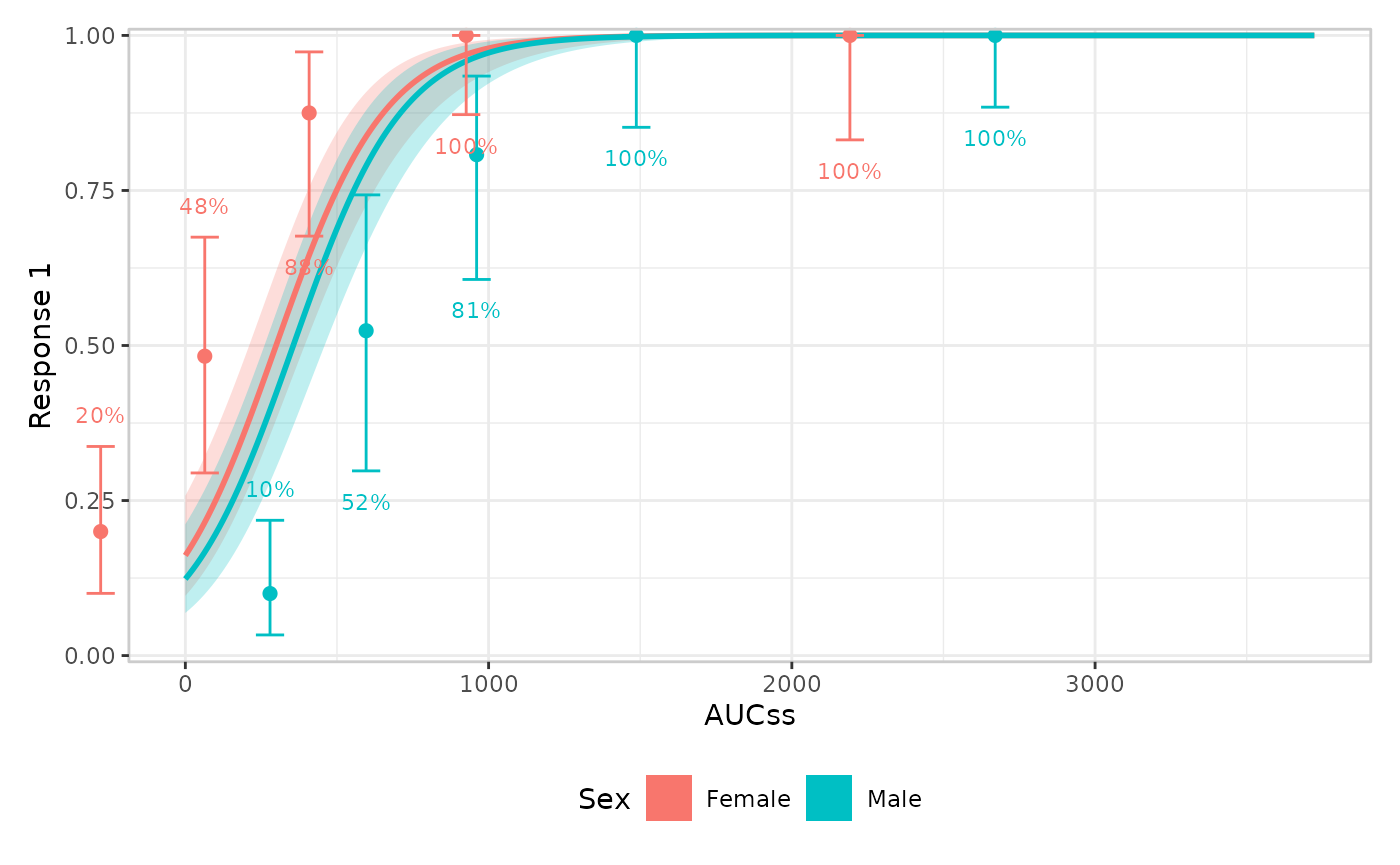

dodge_width adjusts the horizontal separation between strata within each quantile bin. This is a theme-level setting, because it controls the layout of stratification across the quantile layer rather than the look of any single builder.

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles(style = er_style_quantile_errorbar) |>
  er_plot_theme(dodge_width = 0.15) |>
  plot()

Continuous colour/fill palette

color_continuous/fill_continuous are the symmetric counterpart, scoped to aesthetics mapped to something continuous other than the stratification variable. er_style_data_hex()’s bin-density fill is the one built-in example (a continuous/count response’s response-coloured data layer is the other, but there’s currently no built-in “panel”-layout builder for it – see vignettes/articles/extending.Rmd for writing a custom one).

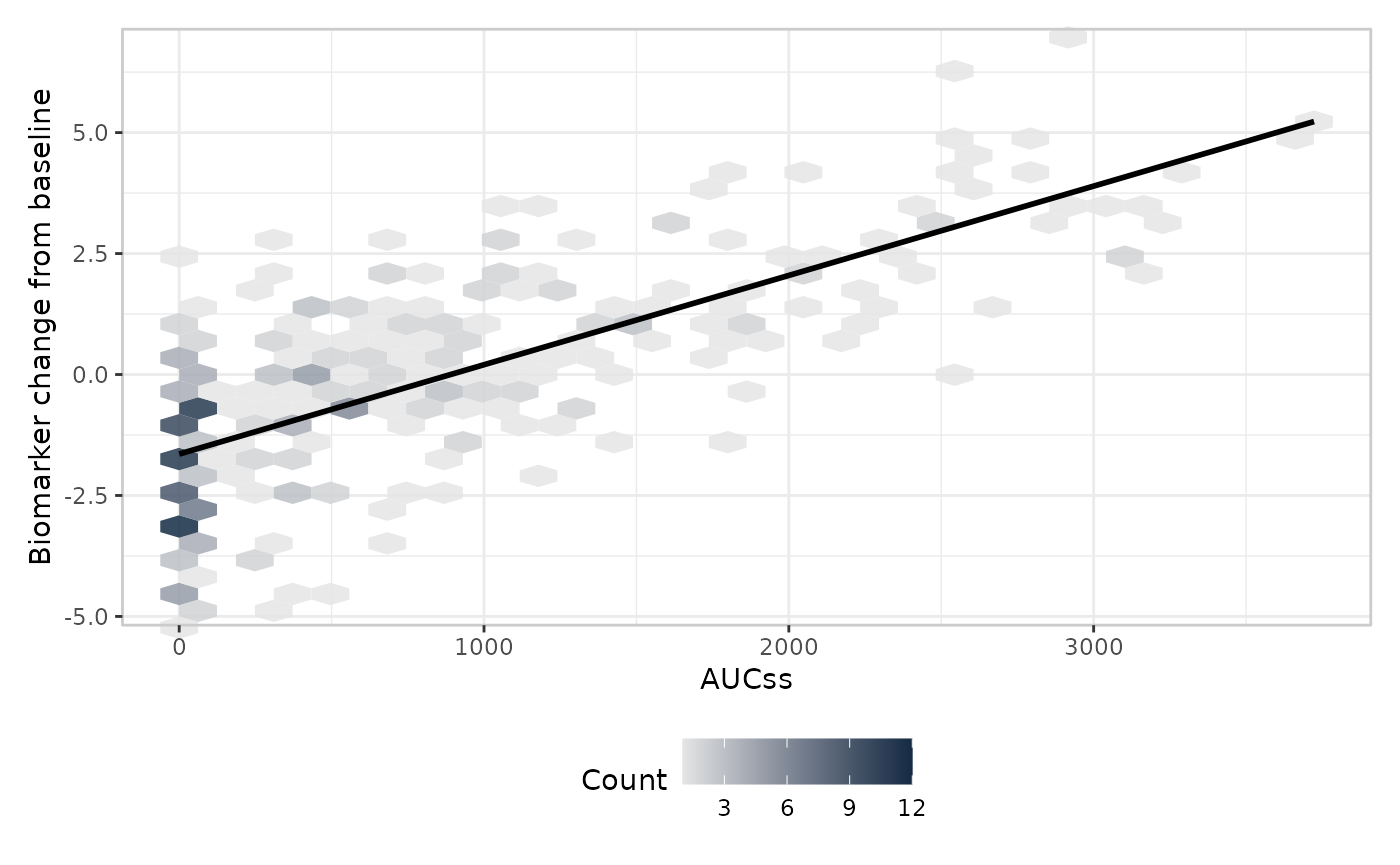

Left unstyled, er_style_data_hex() already supplies its own default – a light-grey-to-navy gradient that fades toward the panel background as a cell’s count approaches zero, rather than ggplot2’s own default mid-intensity blue:

erglm_data |>
  er_plot(aucss, biomarker_change) |>
  er_plot_add_model(mod_gaussian, style = er_style_model_line) |>
  er_plot_add_data(style = er_style_data_hex) |>
  plot()

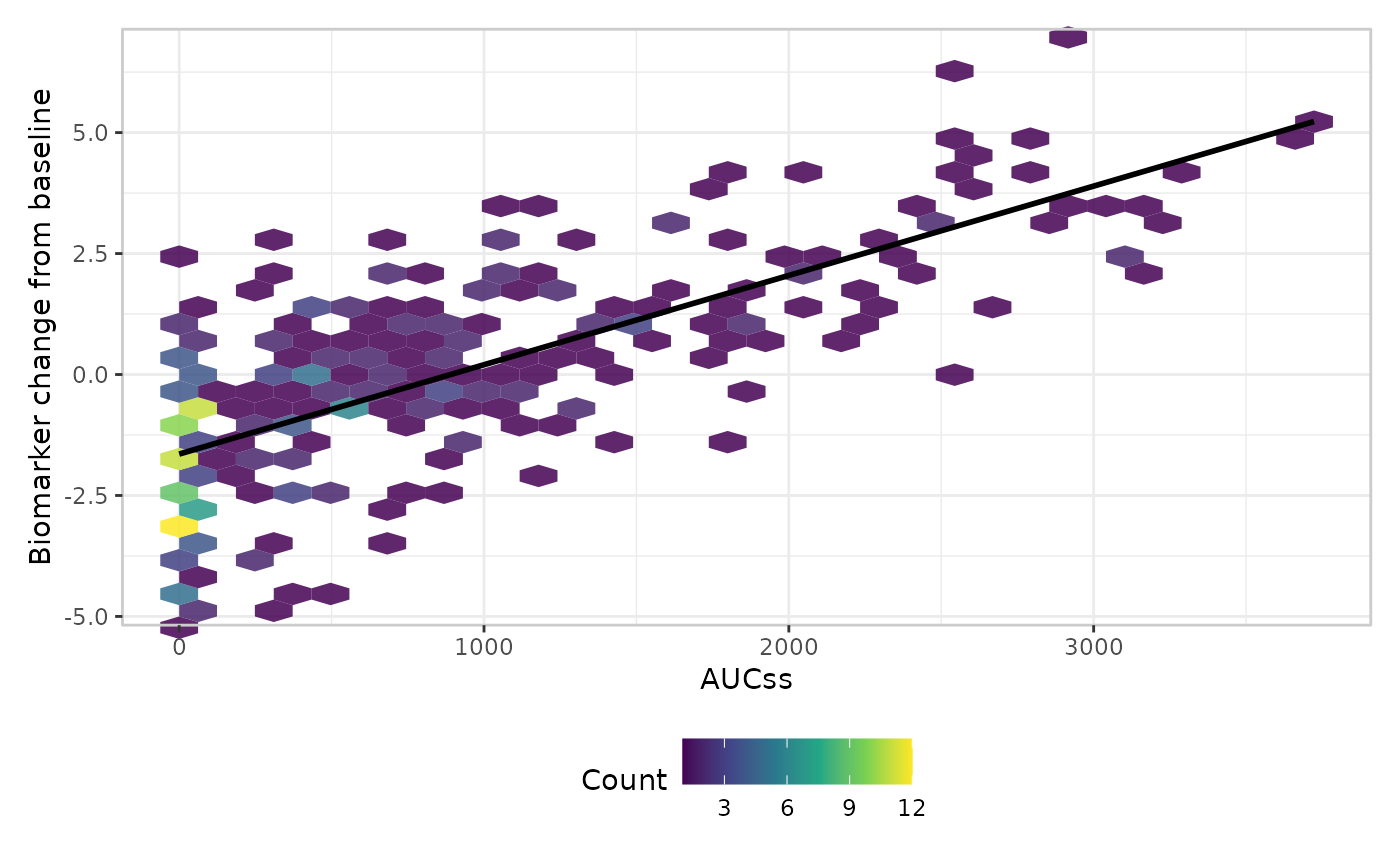

fill_continuous overrides that default wherever it’s set:

erglm_data |>
  er_plot(aucss, biomarker_change) |>
  er_plot_add_model(mod_gaussian, style = er_style_model_line) |>
  er_plot_add_data(style = er_style_data_hex) |>
  er_plot_theme(fill_continuous = ggplot2::scale_fill_viridis_c()) |>
  plot()

As with color_discrete/fill_discrete, color_continuous/ fill_continuous only ever touch the aesthetic role they name – supplying fill_continuous here has no effect on a discrete fill mapping elsewhere in the same plot (e.g. a stratified model ribbon’s fill = strata), and vice versa for fill_discrete.

Formatters

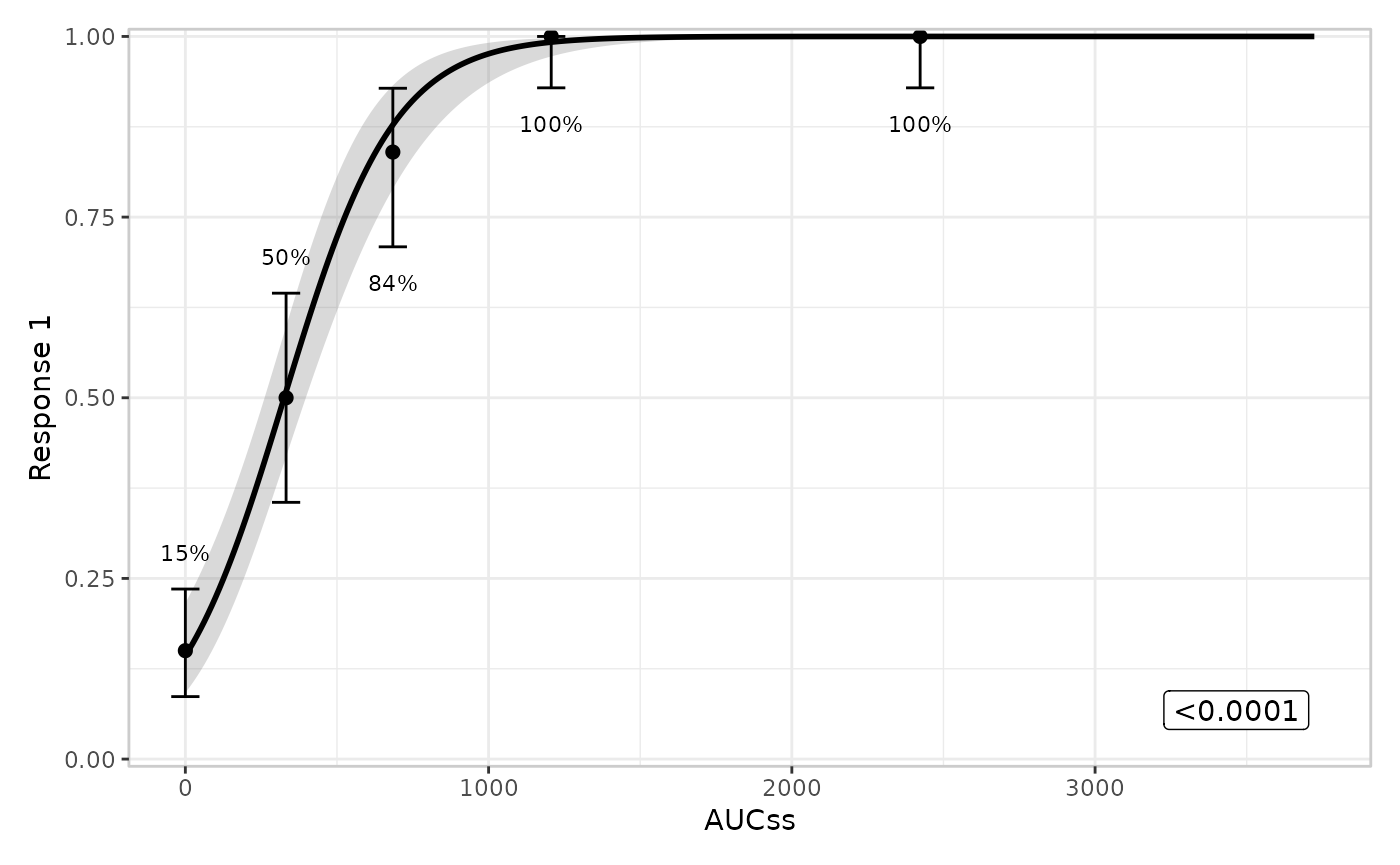

format_p/format_percent/format_number control how the summary and quantile layers format their labels – typically a scales::label_*() call:

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_summary(model = mod) |>
  er_plot_theme(
    format_p = scales::label_pvalue(accuracy = .0001),
    format_percent = scales::label_percent(accuracy = .1)
  ) |>
  plot()

Legend key glyph

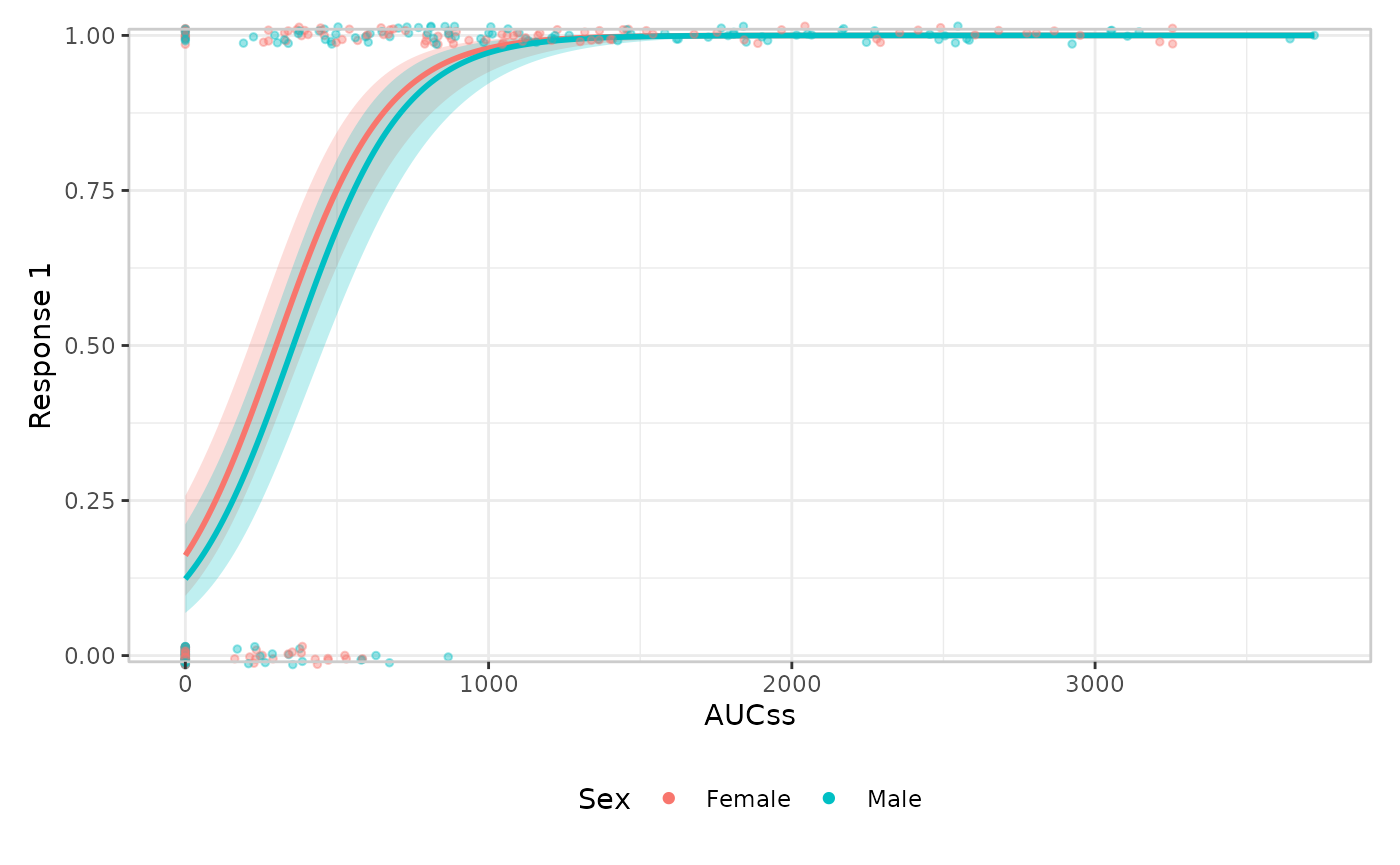

draw_key controls the glyph ggplot2 draws in the legend, e.g. a point instead of the default filled rectangle:

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_data() |>
  er_plot_theme(draw_key = ggplot2::draw_key_point) |>
  plot()

Panel heights

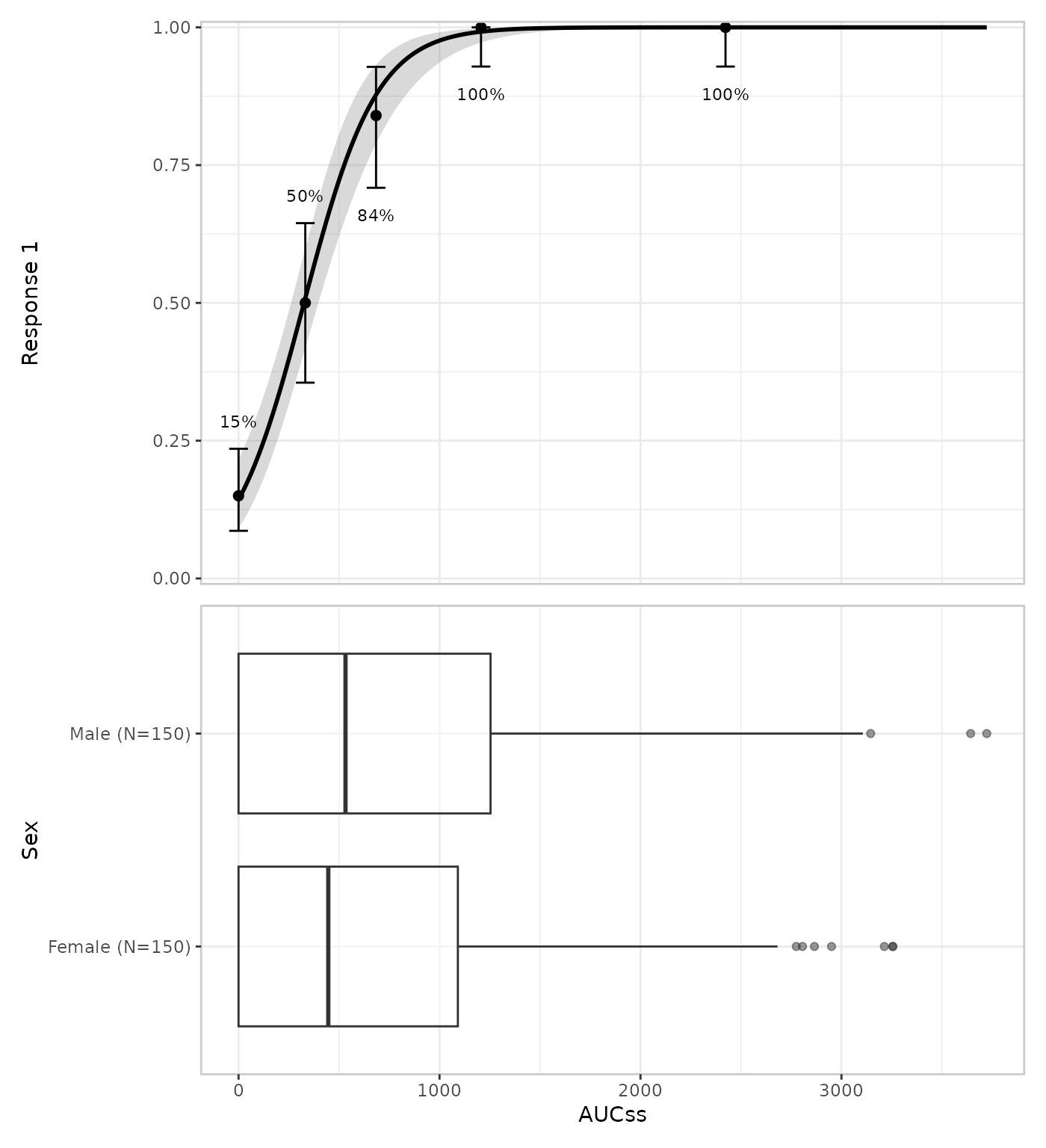

height_base/height_data/height_group set the relative heights patchwork gives to the main panel, any data panels, and any group panels – supplying only one leaves the other two unchanged:

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_groups(sex) |>
  er_plot_theme(height_group = 5) |>
  plot()

Calling er_plot_theme() more than once

Every argument defaults to NULL, so repeated calls accumulate rather than replace: each call only touches the arguments it actually supplies, the same merging behaviour as ggplot2::theme() itself. This makes it natural to build up theming incrementally, e.g. once for labels and again later for the palette:

erglm_data |>
  er_plot(aucss, ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_data() |>
  er_plot_theme(xlab = "Steady-state AUC") |>
  er_plot_theme(color_discrete = ggplot2::scale_color_brewer(palette = "Dark2")) |>
  plot()
