Extending erplots

Source: vignettes/articles/extending.Rmd
extending.Rmd

The goal when writing the erplots package was to provide a flexible mini-language for exposure-response plots that pharmacometricians could use to create most such plots without needing to write hundreds of lines of ggplot2 code. One problem with doing so, however, is that it is almost impossible to anticipate every possible use case for the package. Inevitably, there will be some cases where the specific plot that you need can’t be constructed using the functions that are supplied by erplots. This could then become frustrating for the user, if they already have code that generates most of what they need using erplots, but can’t quite get exactly what they need because there’s one esoteric special case that the package can’t handle.

To mitigate this risk, erplots comes with an extension mechanism: you can write your own “builder” function that will generate the one part of the exposure-response plot that you need to modify, and then erplots will handle the rest.

This article discusses that extension mechanism, by showing you how to write a “builder” function. It assumes you’re already familiar with the erplots mini-language described in the exposure-response plotting grammar article (layers, singleton/additive semantics, stratification); and have a good sense of the overall process of building plots with the package.

What is a builder function?

When creating an exposure-response plot with erplots, you first call er_plot() to create the basic data structure, and then add a series of layers using the five layer functions (er_plot_add_model(), er_plot_add_summary(), er_plot_add_quantiles(), er_plot_add_data(), er_plot_add_groups()) to add the features you want to see in your plot. The key thing to note is that these layer functions don’t create the ggplot2 code themselves. Instead, they delegate that work to some other function that you specify via the style argument. That function is referred to as the “builder” for that layer. The erplots package comes with several different builders for each layer:

Layer Builders
Model er_style_model_ribbonline() (default), er_style_model_line(), er_style_model_spaghetti()
Data er_style_data_overlay() (default), er_style_data_boxjitter(), er_style_data_hex()
Quantile er_style_quantile_errorbar() (default), er_style_quantile_errorbar_vlines(), er_style_quantile_pointrange(), er_style_quantile_pointrange_vlines()
Summary er_style_summary_pvalue() (default), er_style_summary_n(), er_style_summary_coefficients(), er_style_summary_gof()
Groups er_style_group_boxplot() (default), er_style_group_histogram(), er_style_group_violin(), er_style_group_linerange(), er_style_group_boxjitter(), er_style_group_violinjitter()

These builders cover a wide variety of different stylistic features you might want to employ in your exposure-response plots, but if the feature you want is not available, you can write your own. As long as your builder function has the expected structure, erplots will understand what it does and use it when constructing a plot.

The builder signature

The main constraint that you need to satisfy when writing a builder function is to make sure that it takes the expected arguments, and uses those arguments in a manner that is consistent with what the erplots grammar expects. Specifically, every builder function must have this signature, documented in full at er_style():

function(data, config, stratify, exposure, response, strata, theme, ...)

The table below is a quick summary of what erplots passes into each slot; see er_style() if you need the complete reference:

Argument What it is
data The original data frame passed to er_plot(), unmodified.
config The pre-computed configuration for this specific layer. This is different for each layer, and is discussed in more detail below.
stratify TRUE/FALSE: whether this layer should honour stratify_by.
exposure, response, strata Plot-variable metadata lists (name, label, limits, …) describing the exposure, response, and stratification variables declared in er_plot().
theme Shared theming state, adjustable via er_plot_theme(): theme$theme_base, theme$draw_key, theme$format_percent(), theme$format_number().
... Extra named arguments forwarded from the corresponding er_plot_add_*() call’s own .... See “Passing extra arguments to a builder” below.

The builder return value

The function returns a geom, or a list of geoms/other objects that can be added to a ggplot2 plot – nothing more.

Passing extra arguments

Every er_plot_add_*() function also takes its own ..., forwarded unchanged to style when it’s called at build time. Extra arguments must be named – they’re appended positionally after the seven standard arguments, so an unnamed one would silently bind to the wrong parameter. A builder that doesn’t need any extra arguments simply declares ... and ignores it, as every builder in this article does; see er_style()’s own “Passing extra arguments to a builder” section (and er_style_model_spaghetti()’s use of a seed passed this way) for a worked example.

This ... is for the builder only. It’s a different mechanism from er_plot_add_model()’s predict_args, er_plot_add_summary()’s summary_args, and er_vpc_add_simulated()’s simulate_args – those are spliced into the model-interface generics themselves (er_predict()/er_summary()/er_simulate()), for a model-specific argument with no slot in their fixed contract (e.g. a landmark time for a time-to-event model). If you’re writing a custom builder, you’ll never see predict_args/summary_args/simulate_args – they never reach config or the builder’s own .... If you’re implementing the model interface for your own model class instead, see Implementing the model interface, which covers that mechanism.

Understanding the config argument

config is where a custom builder actually gets its data from, and it is not the raw data frame – it’s whatever erplots derived from data/exposure/response/strata before any builder ran. A custom builder’s whole job is to turn that already-computed config into ggplot2 layers; it never needs to re-bin, re-summarise, or re-fit anything itself. Concretely:

Layer Key config field Contents
Model config$predictions One row per exposure grid point, with fit_resp, ci_lower, ci_upper (from er_predict())
Summary config$summary, config$p_value, config$corner_distance config$summary is the full, raw return value of er_summary() (NULL unless a model was supplied) – see Implementing the model interface for its p_value/coefficients/glance contract; config$p_value is that same list’s p_value field, extracted separately since er_style_summary_pvalue() reads it directly; corner_distance is a named vector of four minimum distances (top_left/top_right/bottom_left/bottom_right), computed from data’s raw (exposure, response) points rescaled onto [0, 1], used to place a label away from the observed data
Quantile config$summary One row per exposure-quantile bin (× stratum), with x_mid, y_mid, ci_lower, ci_upper, plus label-placement columns. config$breaks also holds the n + 1 quantile cutpoints themselves (from cut_exposure_quantile()), which er_style_quantile_errorbar_vlines()/er_style_quantile_pointrange_vlines() use to draw bin-boundary separators
Data (none extra) The builder mostly works from data directly, since this layer draws raw observations rather than a summary
Group config[[group_var]]$data, config[[group_var]]$counts The subset of data for that grouping variable, joined to per-group sample-size labels

A worked example

The story above is not entirely complete, but it covers enough that we can work through an example. Let’s suppose the built-in er_style_quantile_errorbar() and er_style_quantile_pointrange() alternatives all feel like the wrong way to display the data summaries by exposure quantile. Instead, you would prefer to draw these binwise summaries using a geom_crossbar(). This isn’t usually a great choice – more on that below – but you may have a good reason for wanting it, so you decide to write your own builder function for this. And since the quantile layer is mostly dependent on the config$summary field, that’s the place to start. When doing so, it helps to look at what config$summary actually contains, and the most reliable way to do that is to ask erplots to show you: write a tiny “spy” builder that just prints config and draws nothing, and pass it in as the style for the layer you want to inspect:

mod <- erglm_model(ae1 ~ aucss, erglm_data, family = binomial())

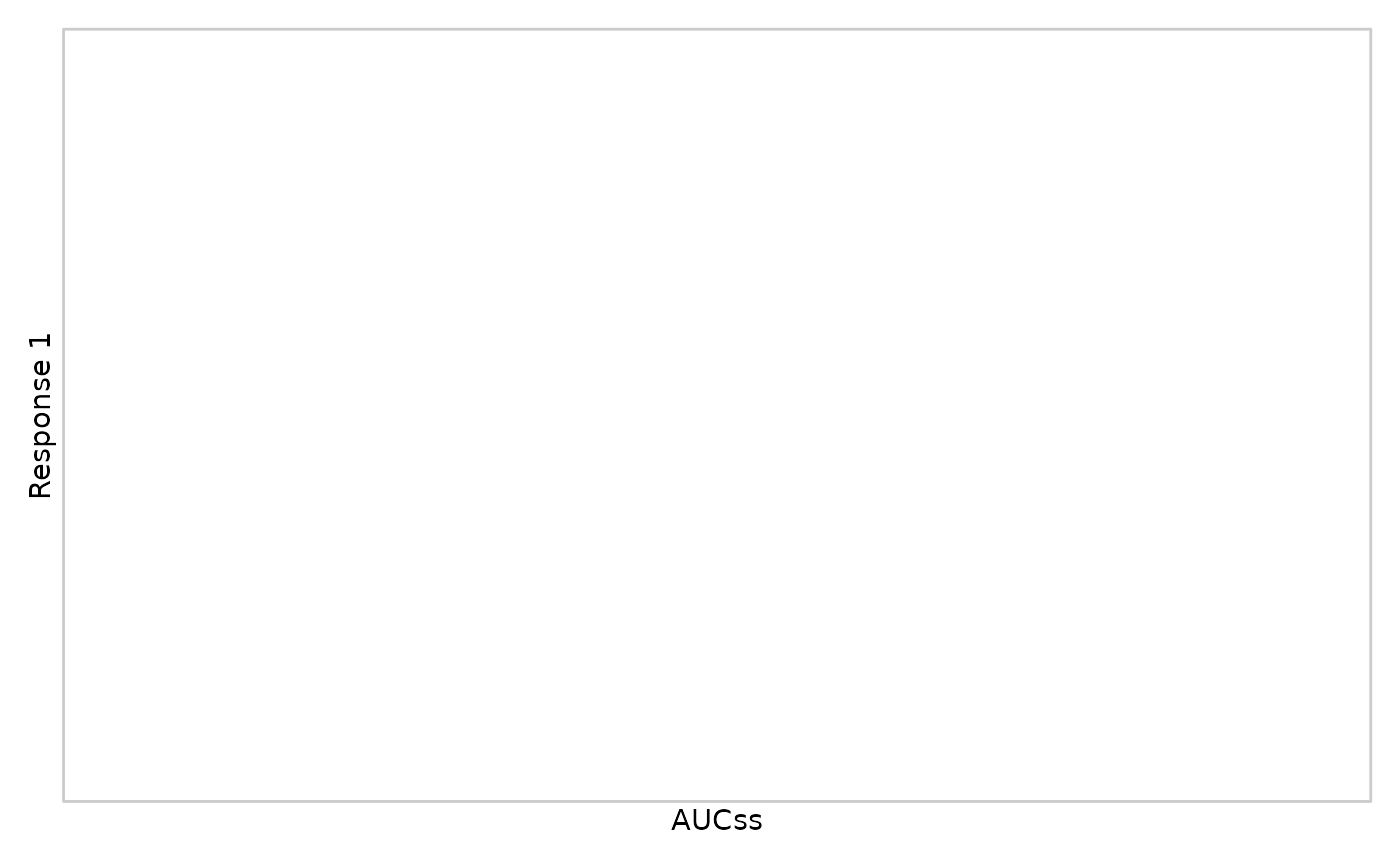

inspect_config <- function(data, config, stratify, exposure, response, strata, theme, ...) {
  print(config$summary)
  list()
}

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_quantiles(n_bins = 6, style = inspect_config) |>
  plot()
#>   exposure_bins strata n1 n0     x_mid     y_mid y_mid_lbl   ci_lower  ci_upper
#> 1            Q3     NA 30  3  756.6058 0.9090909       91% 0.75668365 0.9808451
#> 2            Q6     NA 34  0 2692.8812 1.0000000      100% 0.89718208 1.0000000
#> 3       Placebo     NA 15 85    0.0000 0.1500000       15% 0.08645439 0.2353075
#> 4            Q4     NA 33  0 1079.5067 1.0000000      100% 0.89423719 1.0000000
#> 5            Q1     NA 16 18  286.9162 0.4705882       47% 0.29778667 0.6487072
#> 6            Q2     NA 21 12  487.8252 0.6363636       64% 0.45124536 0.7959969
#> 7            Q5     NA 33  0 1645.4382 1.0000000      100% 0.89423719 1.0000000
#>    y_lwr_lbl y_upr_lbl     y_lbl
#> 1 0.70668365 1.0308451 0.7066836
#> 2 0.84718208 1.0500000 0.8471821
#> 3 0.03645439 0.2853075 0.2853075
#> 4 0.84423719 1.0500000 0.8442372
#> 5 0.24778667 0.6987072 0.6987072
#> 6 0.40124536 0.8459969 0.4012454
#> 7 0.84423719 1.0500000 0.8442372

Looking at this object we see that it is a tibble with one row per exposure quantile (as always, noting that the placebo group will be its own distinct group). Each column contains a summary statistic or indicator variable that you might want to use in your builder function:

  • x_mid and y_mid capture mean exposure and mean response associated with the exposure bin. Our new builder will need to use these.
  • ci_lower and ci_upper are the confidence interval bounds. Our builder will need these too.
  • y_mid_lbl, y_lwr_lbl, y_upr_lbl, and y_lbl support the built-in label geom that er_style_quantile_errorbar() draws alongside its error bar. If we wanted to use labels in our plot we would need these columns, but since we plan to skip that we can ignore them.

Now that we understand what config$summary already provides, writing the builder itself is very straightforward. All we need is a small function that maps those columns onto geom_crossbar()’s aesthetics:

er_style_quantile_crossbar <- function(data,
                                       config,
                                       stratify,
                                       exposure,
                                       response,
                                       strata,
                                       theme,
                                       ...) {
  ggplot2::geom_crossbar(
    data = config$summary,
    mapping = ggplot2::aes(
      x = x_mid,
      y = y_mid,
      ymin = ci_lower,
      ymax = ci_upper
    ),
    inherit.aes = FALSE
  )
}

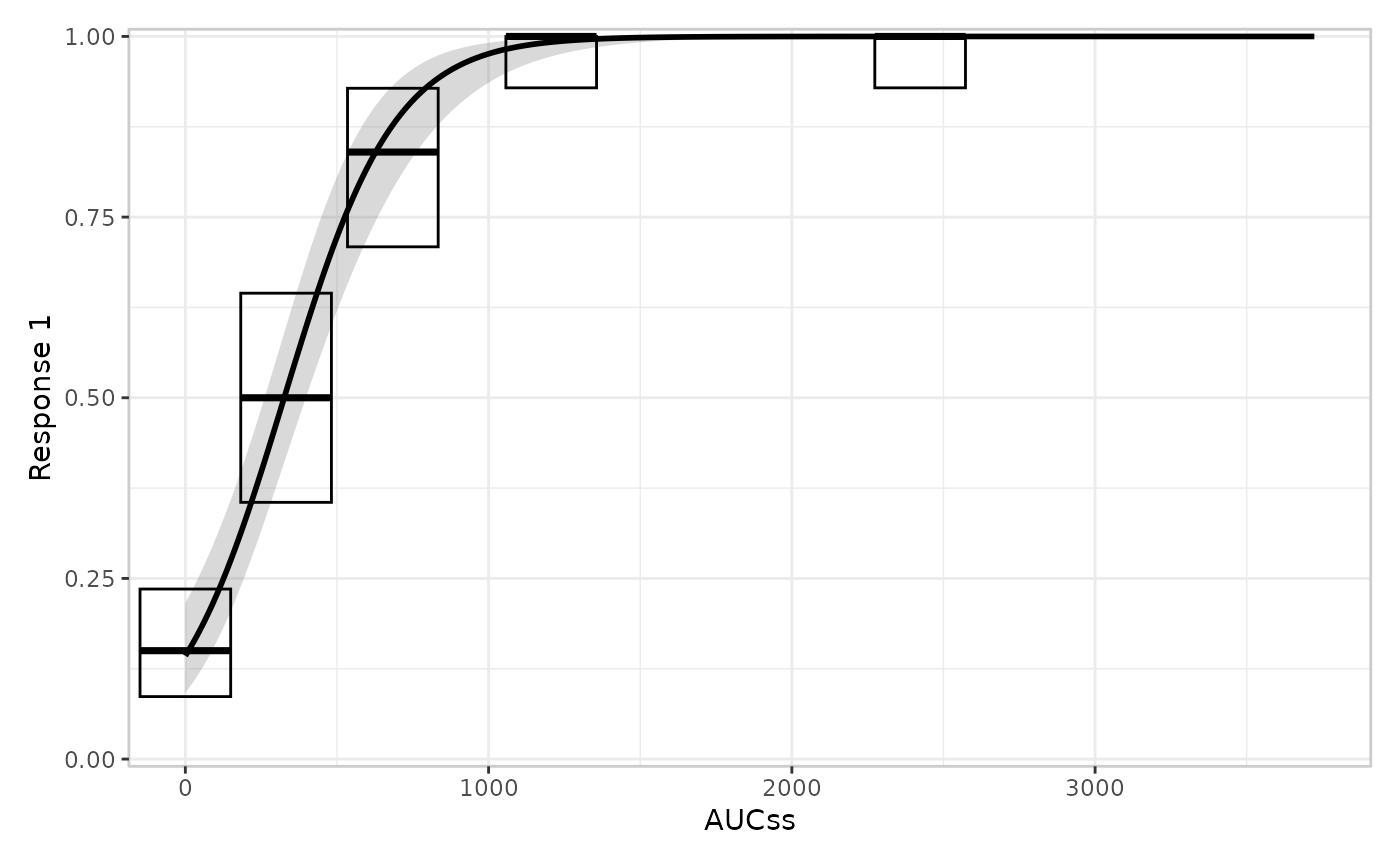

That’s all we need here. This particular builder is simple enough that we just need to specify a single geom, and erplots will handle the rest. Here’s what it looks like when we use it:

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles(style = er_style_quantile_crossbar) |>
  plot()

This is not, in general, a good way to create an exposure-response plot: in statistical graphics, the “cross bar” visual idiom is almost always used to show distributional information (i.e., it feels like a boxplot without the whiskers). Using it to display a mean and confidence interval is almost certainly going to confuse anyone looking at your plot. Even so, it’s convenient to illustrate how to design a builder function.

Before moving on, there are a few things worth noting about this builder, all of which are generalisable to any layer:

  • It ignores data, stratify, exposure, response, strata, and theme entirely – a builder only needs to use the arguments relevant to what it draws. (A stratified version would need to map color = strata and use config$summary’s strata column, plus theme$draw_key for a legend key consistent with the other layers – see er_style_quantile_errorbar()’s source for a worked stratified example.)
  • inherit.aes = FALSE is there because this geom supplies its own data/mapping, distinct from whatever’s already on the base plot (the model curve, in this example) – omitting it would try to inherit the base plot’s aesthetics and fail, since those don’t include ymin/ymax.
  • No new config fields were needed. er_style_quantile_pointrange() (a single geom_pointrange() in place of the errorbar+point pair) started life as exactly this kind of custom builder, and was promoted to a built-in option once it proved to fit the existing config shape – a reasonable bar to check your own custom builders against if you’re considering proposing one upstream.

Supplying builder metadata

The quantile builder above needed nothing beyond the function itself. Some builders, though, make a structural or aesthetic choice that the composition machinery (the code that assembles/labels/legends the finished plot) needs to know about before it calls the builder. Since a builder is “just a function”, that information can’t live in its return value – composition needs it in advance, to decide things like which panel to route the builder’s output into, or how to title a legend. erplots solves this by letting a builder carry metadata as attributes on the function itself, set by a single wrapper function, er_style_tag(), with one optional argument per piece of metadata (layout, fill_role, y_role, layer, draw_order). It wraps a builder and returns it back, attributes attached, so it composes naturally with assignment, and a builder that needs more than one tag only needs one call:

my_builder <- er_style_tag(my_builder, layout = "overlay")

layout: which structural family a data-layer builder belongs to

The data layer (er_plot_add_data()) is the one layer with two mutually exclusive structural families a builder can be slotted into:

  • "overlay": a single call merged directly onto the main model panel, at the observations’ true (exposure, response) coordinates (what er_style_data_overlay(), the default, does).
  • "panel": one or more panels stacked below the base plot, the way er_plot_add_groups()’s panels are (what er_style_data_boxjitter(), the binary-only boxplot+jitter design, does).

er_plot_add_data() has to decide which of two different config shapes to build before it can call the builder – so the layout can’t be inferred from what the builder returns; it has to be knowable from the builder alone. er_style_tag(style, layout = ...) attaches that information as an attribute, and is the one tag that’s mandatory for a data-layer builder:

attr(er_style_data_overlay, "er_style_layout")
#> [1] "overlay"
attr(er_style_data_boxjitter, "er_style_layout")
#> [1] "panel"

A custom data-layer builder that omits this tag fails fast, with a message telling you what to do, rather than silently landing in the wrong structural slot:

untagged_builder <- function(data, config, stratify, exposure, response, strata, theme, ...) {
  ggplot2::geom_point(ggplot2::aes(x = .data[[exposure$name]], y = .data[[response$name]]))
}

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_data(style = untagged_builder) |>
  plot()
#> Error in `.style_layout()`:
#> ! `style` must declare its structural layout.
#> ℹ Wrap a custom data-layer builder with `er_style_tag(style, layout = "overlay")` or `er_style_tag(style, layout = "panel")`.
#> ℹ The built-in builders (`er_style_data_overlay()`, `er_style_data_boxjitter()`) already do this.

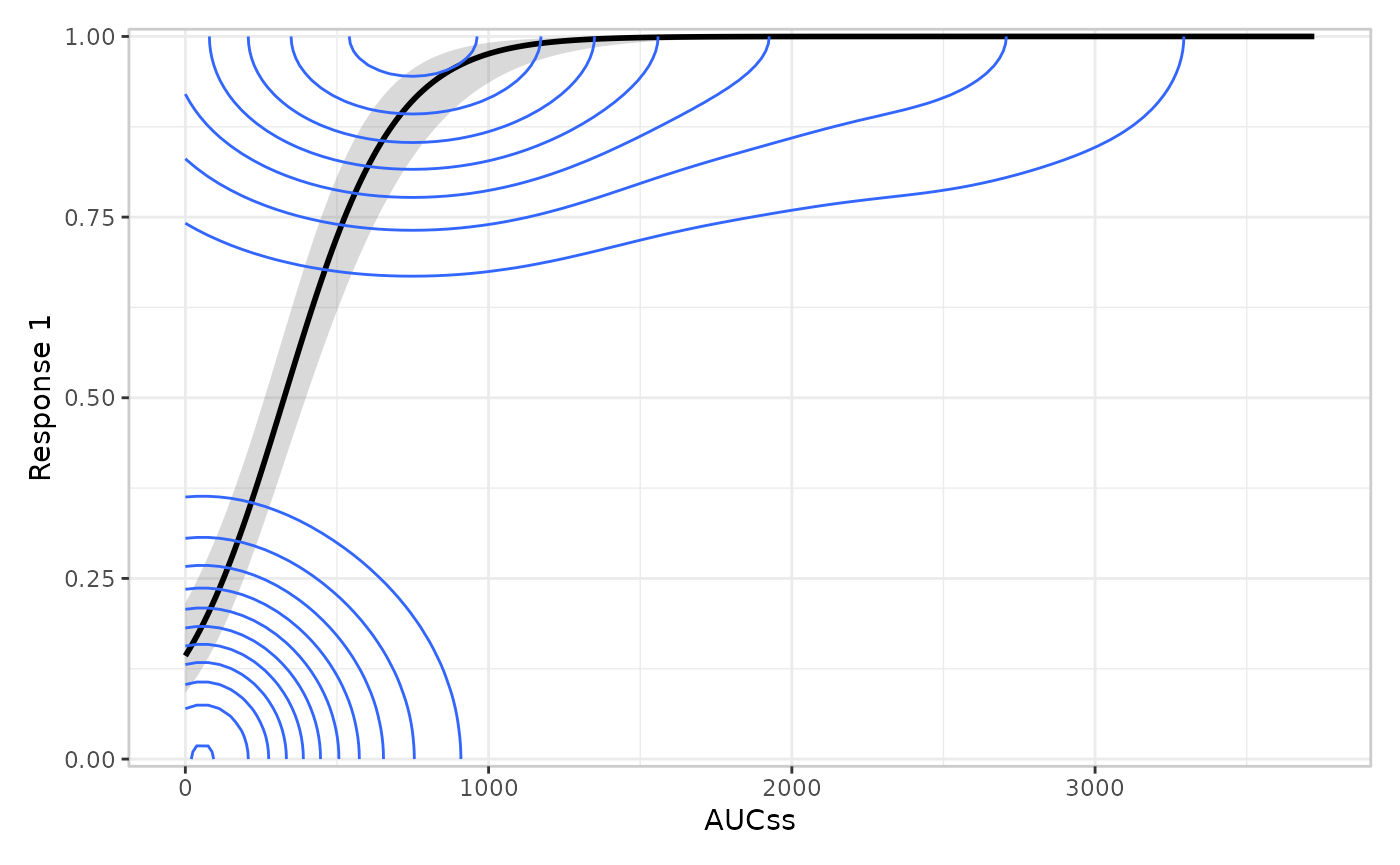

Tagging it with er_style_tag() fixes that. Here’s a complete custom "overlay"-layout data builder – a 2D density contour in place of raw points, useful when there are enough observations that a scatter overplots into an unreadable smear:

er_style_data_density <- er_style_tag(
  function(data, config, stratify, exposure, response, strata, theme, ...) {
    ggplot2::geom_density2d(
      data = data,
      mapping = ggplot2::aes(x = .data[[exposure$name]], y = .data[[response$name]]),
      inherit.aes = FALSE
    )
  },
  layout = "overlay"
)

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_data(style = er_style_data_density) |>
  plot()

fill_role: what a builder’s fill aesthetic means

On the base plot, fill almost always means strata (e.g. a stratified model ribbon). er_style_data_hex() – a built-in "overlay"-layout data builder for when N is too large for a legible scatter – is the one exception: its fill encodes 2D bin density (a continuous scale), not strata, so erplots needs to know to title that legend “Count” rather than the stratification variable’s label. er_style_tag(style, fill_role = "density") records exactly that:

attr(er_style_data_hex, "er_style_fill_role")
#> [1] "density"

erglm_data |>
  er_plot(aucss, biomarker_change) |>
  er_plot_add_model(erglm_model(biomarker_change ~ aucss, erglm_data, family = gaussian())) |>
  er_plot_add_data(style = "hex") |>
  plot()

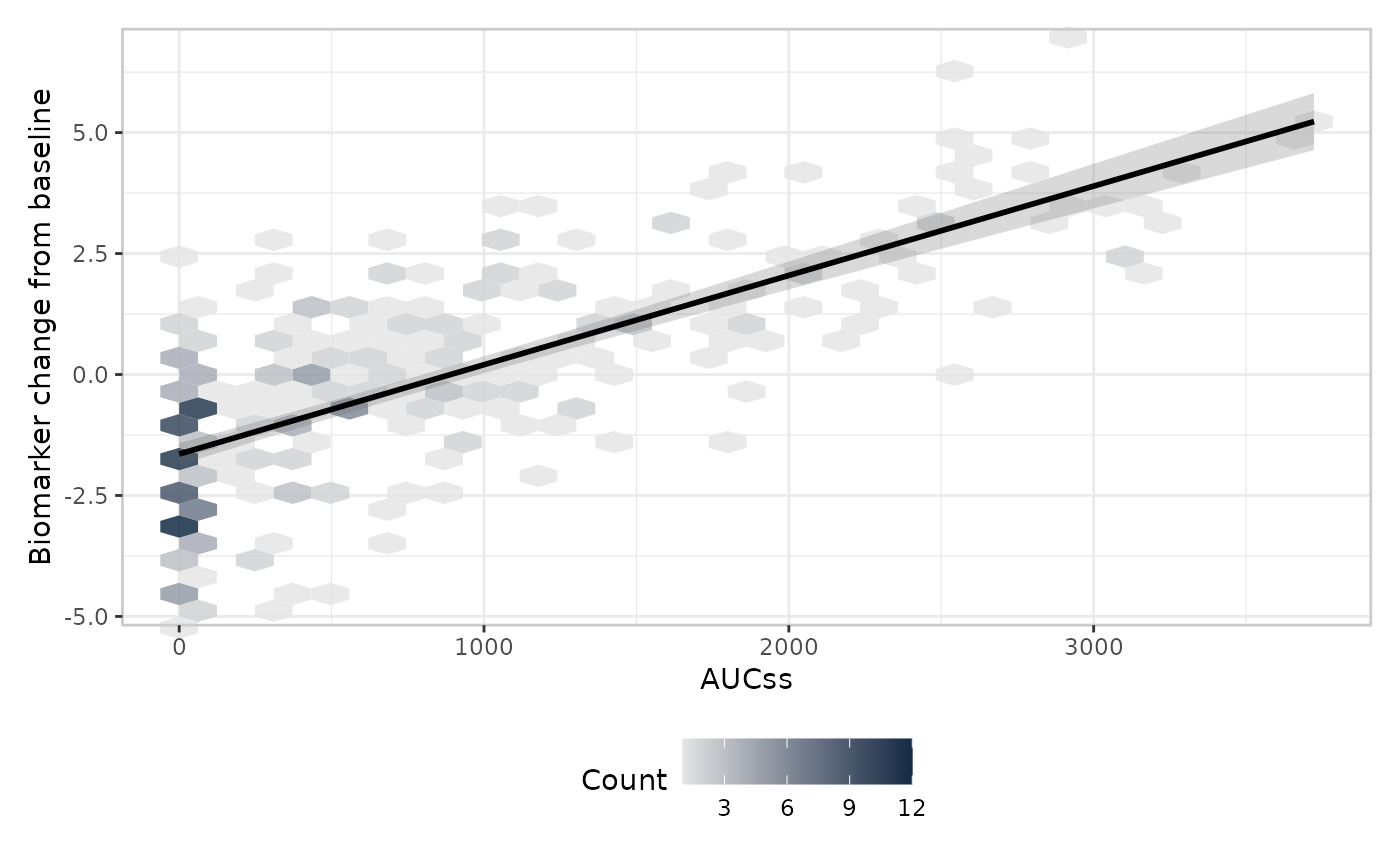

Note the legend is titled “Count”, not the (nonexistent, here) strata label – that’s erplots consulting the "density" tag. Unlike layout, fill_role is optional: a builder that doesn’t set it is assumed to mean strata whenever it maps fill at all, which is the right default for every other builder.

y_role: what a builder’s y-axis means

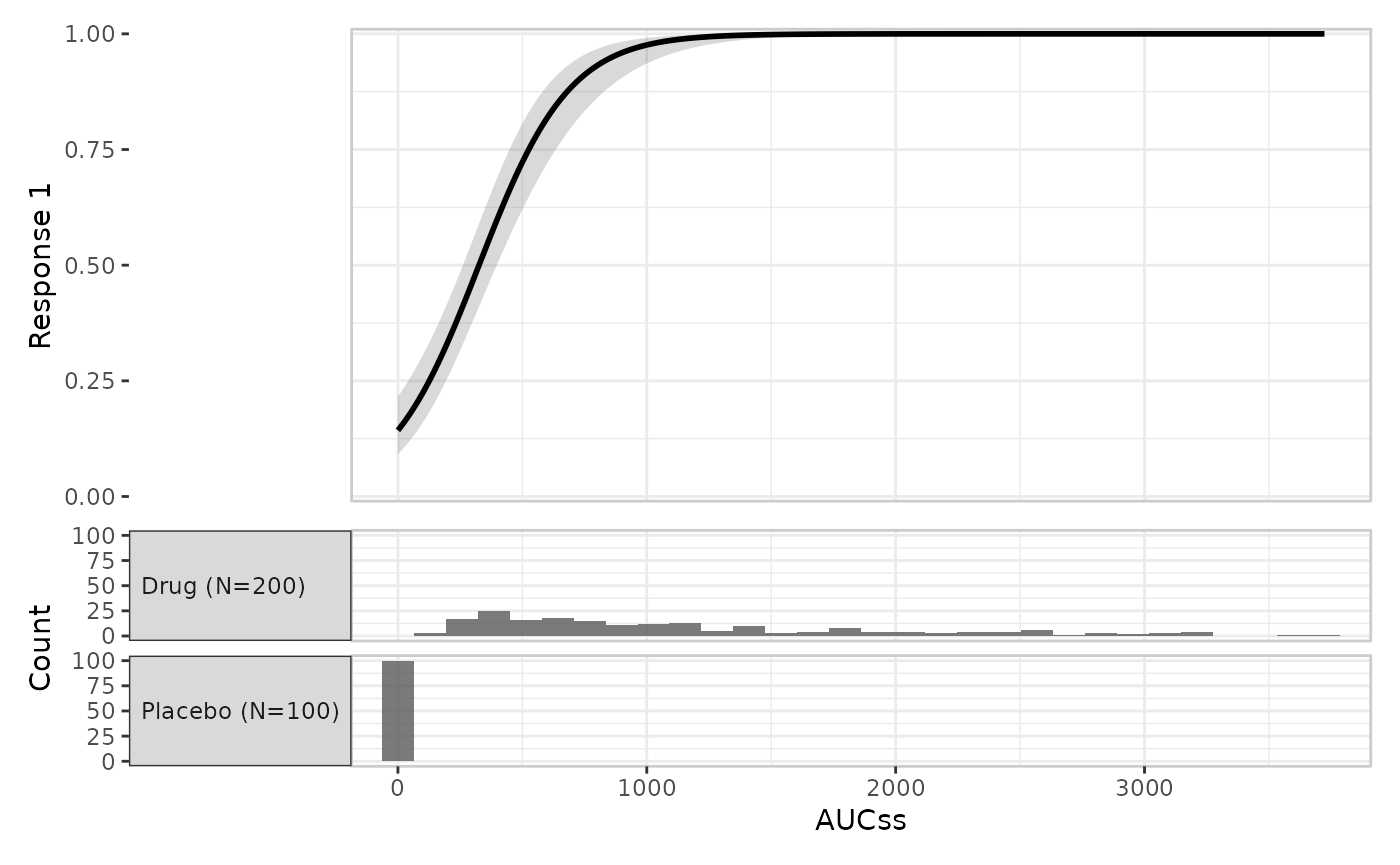

er_plot_add_groups()’s default builder, er_style_group_boxplot() (along with the rest of the built-in group builders except er_style_group_histogram(), e.g. er_style_group_violin()), puts the group variable itself on the y-axis – one categorical row per level – so the group variable’s own label is the right axis title. er_style_group_histogram() instead needs its y-axis free for counts, moving group levels onto facet strips instead; er_style_tag(style, y_role = "count") tells erplots to title the y-axis “Count” rather than the group variable’s label:

attr(er_style_group_histogram, "er_style_y_role")
#> [1] "count"

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_groups(group_by = treatment, style = "histogram") |>
  plot()

Like fill_role, this tag is optional – a group builder that doesn’t set it keeps the default behaviour (group variable’s label on the y-axis), which is correct for er_style_group_boxplot()/ er_style_group_violin().

layer: which er_plot_add_*() a builder is meant for

layout, fill_role, and y_role all feed the composition machinery – deciding where a builder’s output goes, or how to title a legend/axis once it’s drawn. layer is different: it’s read by the er_plot_add_*() functions themselves, before they call the builder at all, purely to catch a builder plugged into the wrong slot. Every built-in builder declares it – er_style_quantile_errorbar() is tagged layer = "plot_quantile", er_style_group_violin() is tagged layer = "plot_group", and so on for all five layers ("plot_model", "plot_summary", "plot_quantile", "plot_data", "plot_group" – "plot_summary" is its own layer, er_plot_add_summary(), independent of the model layer). Every value is prefixed with the grammar it belongs to (plot_/vpc_/tte_) – see “Writing a custom builder for er_tte()” below for why. Passing a builder tagged for one layer into a different layer’s er_plot_add_*() call errors immediately, naming both the layer the builder was tagged for and the layer it was actually passed to:

erglm_data |>
  er_plot(aucss, ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_data(style = er_style_quantile_errorbar)
#> Error in `.check_style_layer()`:
#> ! `style` is tagged for the "plot_quantile" layer, but was passed to a "plot_data" layer function.
#> ℹ Use a builder tagged `er_style_tag(fn, layer = "plot_data")` (or with no `layer` tag at all).
attr(er_style_quantile_errorbar, "er_style_layer")
#> [1] "plot_quantile"

Unlike layout, layer is entirely optional – a custom builder that omits it is simply never checked, regardless of which er_plot_add_*() it’s passed to. This means existing custom builders written before layer existed keep working unchanged; tagging one is purely a way to get an earlier, more specific error if it’s ever passed to the wrong place by mistake.

draw_order: where an overlay-layout data builder’s geoms sit in the main panel

The model, summary, and quantile layers always draw in the same fixed order relative to each other when they share the main panel. An "overlay"-layout data builder’s geoms, by default, draw last – on top of all three – which is the right choice for a sparse builder like er_style_data_overlay(), whose individual points should never be hidden behind a translucent model ribbon. But a builder whose geoms cover the whole panel, with no gaps for anything underneath to show through, would completely bury the model curve and summary annotation by drawing last in the same way. er_style_tag(style, draw_order = "background") tells erplots to draw that builder’s geoms first instead, so the model/summary/quantile layers are drawn on top of it. er_style_data_hex() is tagged this way:

attr(er_style_data_hex, "er_style_draw_order")
#> [1] "background"

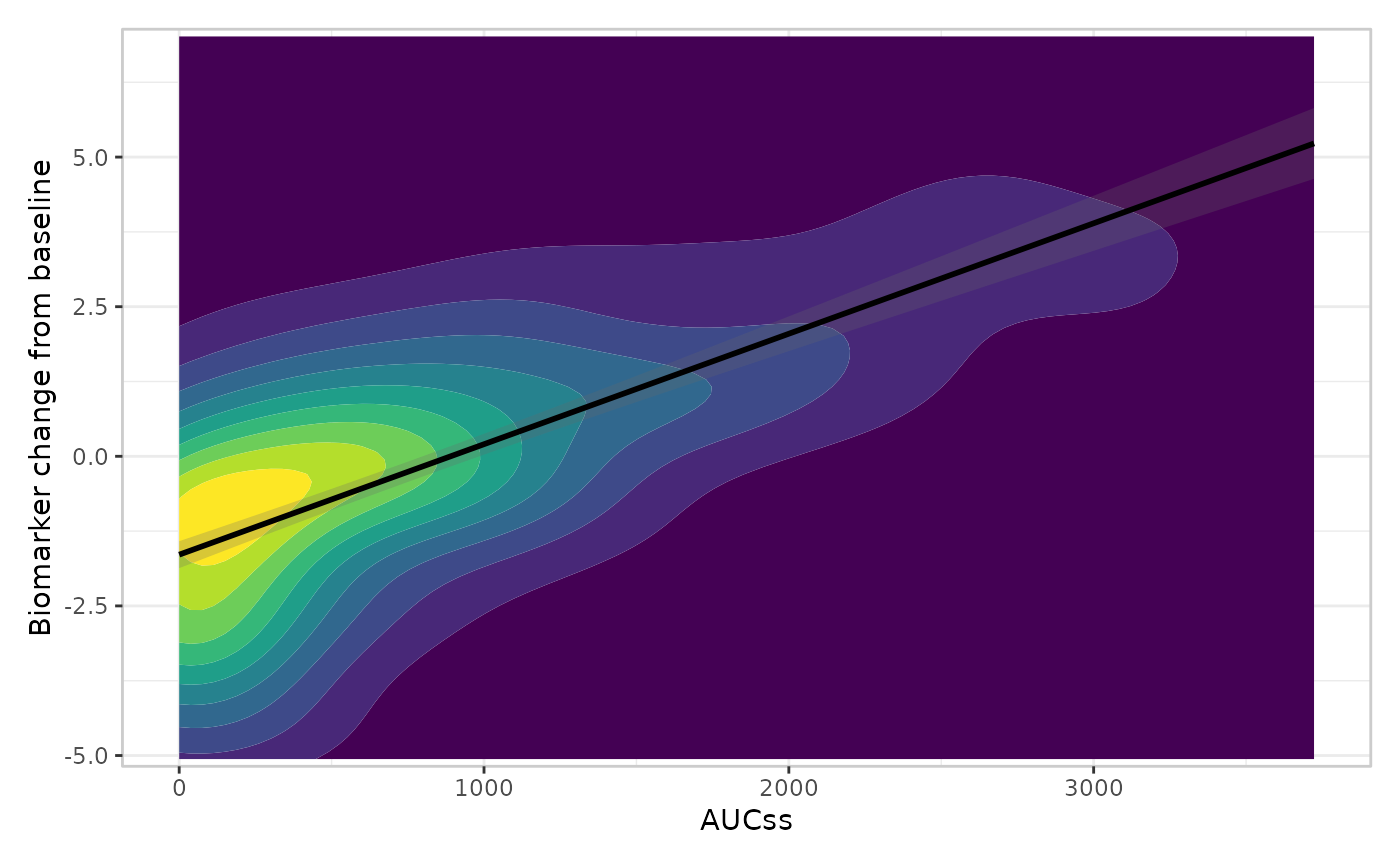

Here’s a custom "overlay"-layout builder that makes the same choice – a filled 2D density contour, which (like er_style_data_hex()) covers the whole panel:

mod_gaussian <- erglm_model(biomarker_change ~ aucss, erglm_data, family = gaussian())

er_style_data_density_fill <- er_style_tag(
  function(data, config, stratify, exposure, response, strata, theme, ...) {
    ggplot2::geom_density_2d_filled(
      data = data,
      mapping = ggplot2::aes(x = .data[[exposure$name]], y = .data[[response$name]]),
      contour_var = "ndensity",
      show.legend = FALSE
    )
  },
  layout = "overlay",
  draw_order = "background"
)

erglm_data |>
  er_plot(aucss, biomarker_change) |>
  er_plot_add_model(mod_gaussian) |>
  er_plot_add_data(style = er_style_data_density_fill) |>
  plot()

The model curve stays visible because the filled contours were drawn first. Omitting the draw_order tag (or setting it to "foreground", equivalent to the default) draws exactly the same contours after the model curve instead, burying it completely:

er_style_data_density_fill_fg <- er_style_tag(
  function(data, config, stratify, exposure, response, strata, theme, ...) {
    ggplot2::geom_density_2d_filled(
      data = data,
      mapping = ggplot2::aes(x = .data[[exposure$name]], y = .data[[response$name]]),
      contour_var = "ndensity",
      show.legend = FALSE
    )
  },
  layout = "overlay"
)

erglm_data |>
  er_plot(aucss, biomarker_change) |>
  er_plot_add_model(mod_gaussian) |>
  er_plot_add_data(style = er_style_data_density_fill_fg) |>
  plot()

draw_order only has an effect on an "overlay"-layout data builder. A "panel"-layout builder’s geoms (e.g. er_style_data_boxjitter()) are drawn in their own, separate patchwork panel, never sharing space with the model/summary/quantile layers, so the tag is inert there if set.

One function, several independent arguments

layout, fill_role, y_role, layer, draw_order, label, and overwrite are all set via the same er_style_tag() call rather than separate wrapper functions. Each argument is independent and optional (aside from layout being mandatory for a data-layer builder specifically – see above, and overwrite requiring label, which in turn requires layer), so a builder that needs to declare more than one piece of metadata – say, a custom “overlay”-layout data builder whose fill also means something other than strata, and whose geoms cover the whole panel – can do it in one call:

my_density_builder <- er_style_tag(
  my_density_builder,
  layout = "overlay",
  fill_role = "density",
  layer = "plot_data",
  draw_order = "background"
)

This is close to what the built-in er_style_data_hex() does (it sets layout, fill_role, layer, and draw_order together).

Summary

Argument Applies to Required? What it controls
layout Data-layer builders only Yes – errors if missing "overlay" (merged onto the main panel) vs. "panel" (stacked panels below)
fill_role Any builder mapping fill No – defaults to strata Legend title for a non-strata fill aesthetic (e.g. "density")
y_role Group-layer builders only No – defaults to the group variable’s label y-axis title when the y-axis isn’t the group variable itself (e.g. "count")
layer Any builder No – unchecked if unset Which er_plot_add_*() the builder is meant for; mismatches error immediately
draw_order "overlay"-layout data builders only No – defaults to "foreground" "foreground" (drawn after model/summary/quantile) vs. "background" (drawn before)
label Any builder No – requires layer to also be set Registers a short string (e.g. "line") as an alias for the builder, usable wherever style is accepted – see [er_style_labels()]
overwrite Any builder No – requires label, defaults to FALSE Whether re-registering an already-taken (layer, label) pair to a different function is allowed

None of this machinery is needed for a builder that draws a familiar idiom in a familiar slot – the crossbar example above needed no tags at all. It exists for the less common case where a builder changes where its output goes, or what one of its aesthetics represents, and the rest of the plot needs to be told so it can label things correctly. See er_style() for the full public-API contract, and the exposure-response plotting grammar article for how these layers fit together more broadly.

Writing a custom builder for er_vpc()

Everything above is about er_plot()’s own builders. er_vpc() (see Visual predictive checks) has its own, narrower shared signature, documented in full at er_style_vpc():

function(data, config, exposure, response, theme, ...)

The main difference from er_plot()’s signature is that stratify/ strata are missing – a VPC builder never needs to know about stratification directly, since er_vpc()’s stratify_by only ever facets the finished plot rather than recolouring it. See er_style_vpc() for the full rationale.

config$summary is the table both er_style_vpc_observed_mean_errorbar() and er_style_vpc_simulated_mean_errorbar() (the defaults) plot from: one row per bin, with y_mid/ci_lower/ci_upper and, depending on config$is_numeric_group, either .vpc_bin (a categorical plot_by) or x_median/x_mid (a numeric one) to plot at. config$percentiles is the table the quantile-line/quantile-errorbar idioms read instead – one row per bin and per requested percentile – and is only computed for a continuous/count response with probs set; a builder that expects it should check for NULL the way every built-in one does, or declare response_types (below) so er_vpc_add_observed()/er_vpc_add_simulated() catch the mismatch earlier.

A worked example

Suppose the default point-and-solid-errorbar look for the observed layer doesn’t stand out enough against a ribbon-heavy simulated layer. Diamond markers with a dashed error bar are one easy way to make the observed side visually distinct, built the same way er_style_vpc_observed_mean_errorbar() itself is, straight from config$summary:

er_style_vpc_observed_diamond <- er_style_tag(
  function(data, config, exposure, response, theme, ...) {
    x_var <- if (config$is_numeric_group) "x_median" else ".vpc_bin"
    list(
      ggplot2::geom_errorbar(
        data = config$summary,
        mapping = ggplot2::aes(x = .data[[x_var]], ymin = ci_lower, ymax = ci_upper, color = "Observed"),
        width = 0.15, linetype = "dashed",
        inherit.aes = FALSE
      ),
      ggplot2::geom_point(
        data = config$summary,
        mapping = ggplot2::aes(x = .data[[x_var]], y = y_mid, color = "Observed"),
        shape = 18, size = 3,
        inherit.aes = FALSE
      )
    )
  },
  layer = "vpc_observed",
  response_types = c("binary", "continuous", "count"),
  plot_by_types = c("continuous", "discrete"),
  marker_source = "summary"
)

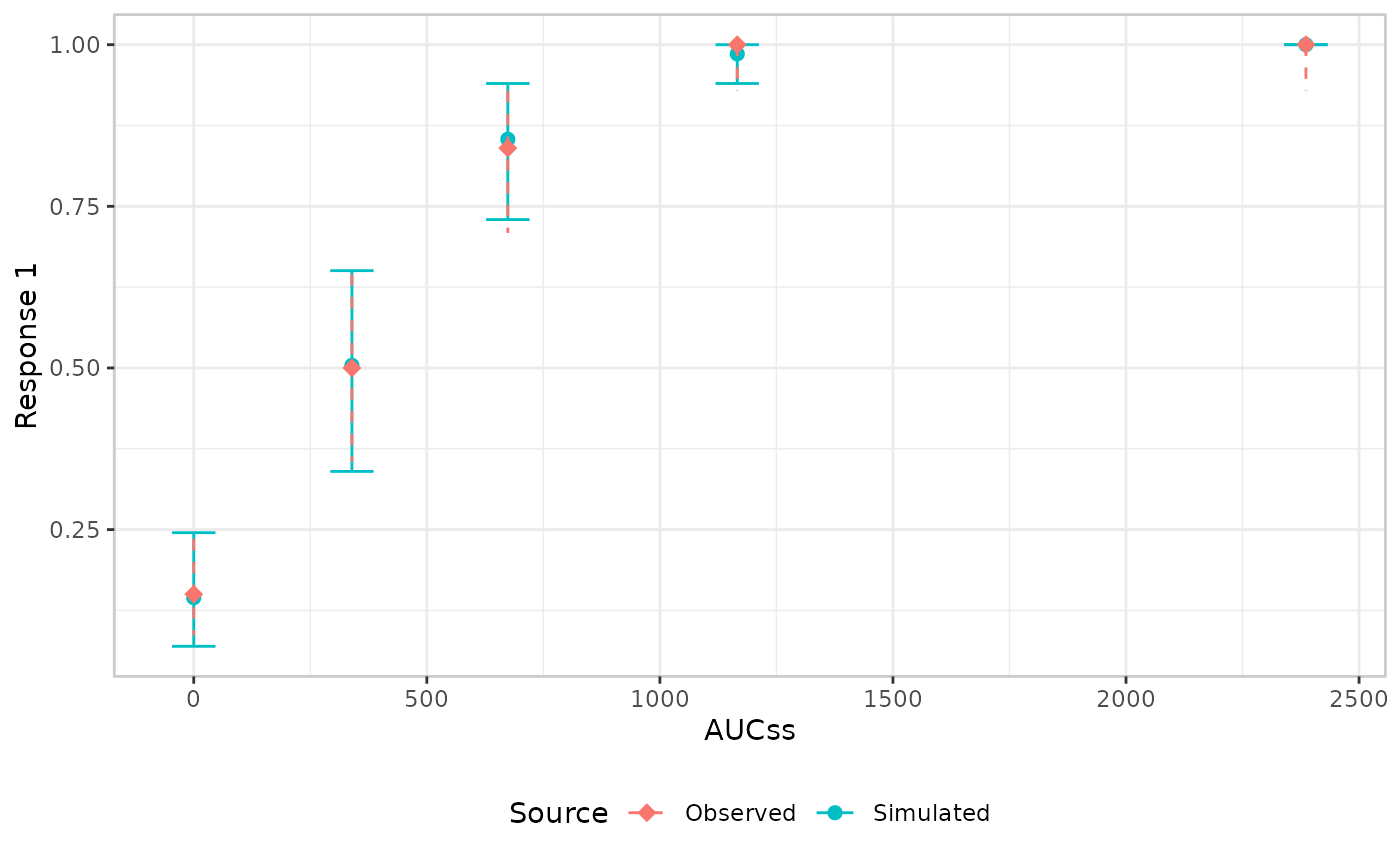

Plugged in for the observed layer only – there’s no requirement to customise both sides of the comparison at once – it pairs without incident against the default simulated builder:

mod <- erglm_model(ae1 ~ aucss, erglm_data, family = binomial())

erglm_data |>
  er_vpc(exposure = aucss, response = ae1) |>
  er_vpc_add_observed(style = er_style_vpc_observed_diamond) |>
  er_vpc_add_simulated(model = mod, seed = 1234) |>
  plot()

VPC-specific er_style_tag() arguments

er_vpc_add_observed()/er_vpc_add_simulated() recognise four er_style_tag() arguments beyond layer (checked the same way as er_plot_add_*()’s own layer tag above), none of which apply to an er_plot() builder:

Argument Applies to Required? What it controls
response_types Any VPC builder No – unchecked if unset Which of "binary"/"continuous"/"count" responses the builder supports
plot_by_types Any VPC builder No – unchecked if unset Whether the builder supports a "continuous" (numeric) plot_by, a "discrete" (categorical) one, or both
vpc_layout Any VPC builder No – unchecked if unset "categorical" (plots at discrete bin locations) vs. "continuous" (plots at each bin’s numeric midpoint) – a separate argument from the data layer’s own layout, which uses an unrelated "overlay"/"panel" pair, and checked between the observed and simulated builder rather than against a fixed rule
marker_source Any VPC builder No – unchecked if unset Which config table ("summary" or "percentiles") the builder actually draws its marker(s) from, read by er_vpc_theme()’s xlim/ylim clipping check (see Visual predictive checks)

response_types/plot_by_types are checked against the VPC object’s own data, not against another builder – er_style_vpc_observed_quantile_line() declares response_types = c("continuous", "count") (it needs config$percentiles, never computed for a binary response), so pairing it with a binary-response VPC errors immediately, before any binning happens:

erglm_data |>
  er_vpc(exposure = aucss, response = ae1) |>
  er_vpc_add_observed(style = "quantile_line")
#> Error in `.check_style_response_type()`:
#> ! `style` does not support a "binary" response.
#> ℹ It only supports: "continuous", "count".

vpc_layout, by contrast, is checked between the two builders passed to er_vpc_add_observed()/er_vpc_add_simulated(), not against the data – pairing a "categorical"-layout builder with a "continuous"-layout one would otherwise plot the two sides of the comparison at inconsistent x-positions for the same bin:

stub_categorical <- er_style_tag(
  function(data, config, exposure, response, theme, ...) list(),
  layer = "vpc_observed", vpc_layout = "categorical"
)
stub_continuous <- er_style_tag(
  function(data, config, exposure, response, theme, ...) list(),
  layer = "vpc_simulated", vpc_layout = "continuous"
)

mod_gauss <- erglm_model(biomarker_change ~ aucss, erglm_data, family = gaussian())

erglm_data |>
  er_vpc(exposure = aucss, response = biomarker_change) |>
  er_vpc_add_observed(style = stub_categorical) |>
  er_vpc_add_simulated(model = mod_gauss, seed = 1234, style = stub_continuous)
#> Error in `.check_vpc_layout_match()`:
#> ! The observed layer's builder is tagged vpc_layout = "categorical", but the simulated layer's builder is tagged vpc_layout = "continuous".
#> ℹ A "categorical" builder plots at discrete bin locations; a "continuous" builder plots at each bin's numeric midpoint -- pairing them plots the two layers at inconsistent x-positions.
#> ℹ Use a layout-matched pair (e.g. `er_style_vpc_observed_quantile_line()` + `er_style_vpc_simulated_quantile_ribbon()`).
#> ℹ Or leave `vpc_layout` untagged, like `er_style_vpc_observed_mean_errorbar()`/`er_style_vpc_simulated_mean_errorbar()` and `er_style_vpc_observed_quantile_errorbar()`/`er_style_vpc_simulated_quantile_errorbar()` do, to skip this check entirely.

None of the built-in idioms actually disagree this way – the two built-in vpc_layout-tagged builders (er_style_vpc_observed_quantile_line()/ er_style_vpc_simulated_quantile_ribbon()) are already a matched pair, and every other built-in pair leaves vpc_layout untagged entirely, since their x-position adapts to plot_by’s type at build time rather than being fixed. The check exists for a custom builder that does commit to one family or the other.

Writing a custom builder for er_tte()

er_tte() (see Time-to-event plots) has its own shared signature too, documented in full at er_style_tte(), closer to er_plot()’s than er_vpc()’s:

function(data, config, stratify, time, strata, theme, ...)

time replaces exposure/response, and unlike a VPC builder, a TTE builder does get stratify/strata: TTE stratification maps to colour/fill directly (one Kaplan-Meier curve per stratum, same panel) rather than VPC’s facet-only treatment. See er_style_tte() for the full rationale.

config’s contents differ by layer: the curve layer gets config$table (the tidy Kaplan-Meier table, with a (0, 1) origin row already prepended) and config$time_upper; the censor layer gets a config$table already filtered to censoring events; the risktable layer gets its own config$table/config$breaks; the summary layer gets config$logrank_p_value (the log-rank p-value, NULL when unstratified or fewer than 2 strata levels are present), config$summary (the supplied model’s er_summary() result, when one was given), and config$corner_distance; the model layer gets config$predictions/config$time_grid. A custom builder for a given layer reads whichever of these its own layer actually populates – see er_style_tte_curve()/ er_style_tte_censor()/er_style_tte_risktable()/er_style_tte_summary()/ er_style_tte_model() for the exact shape of each.

A worked example

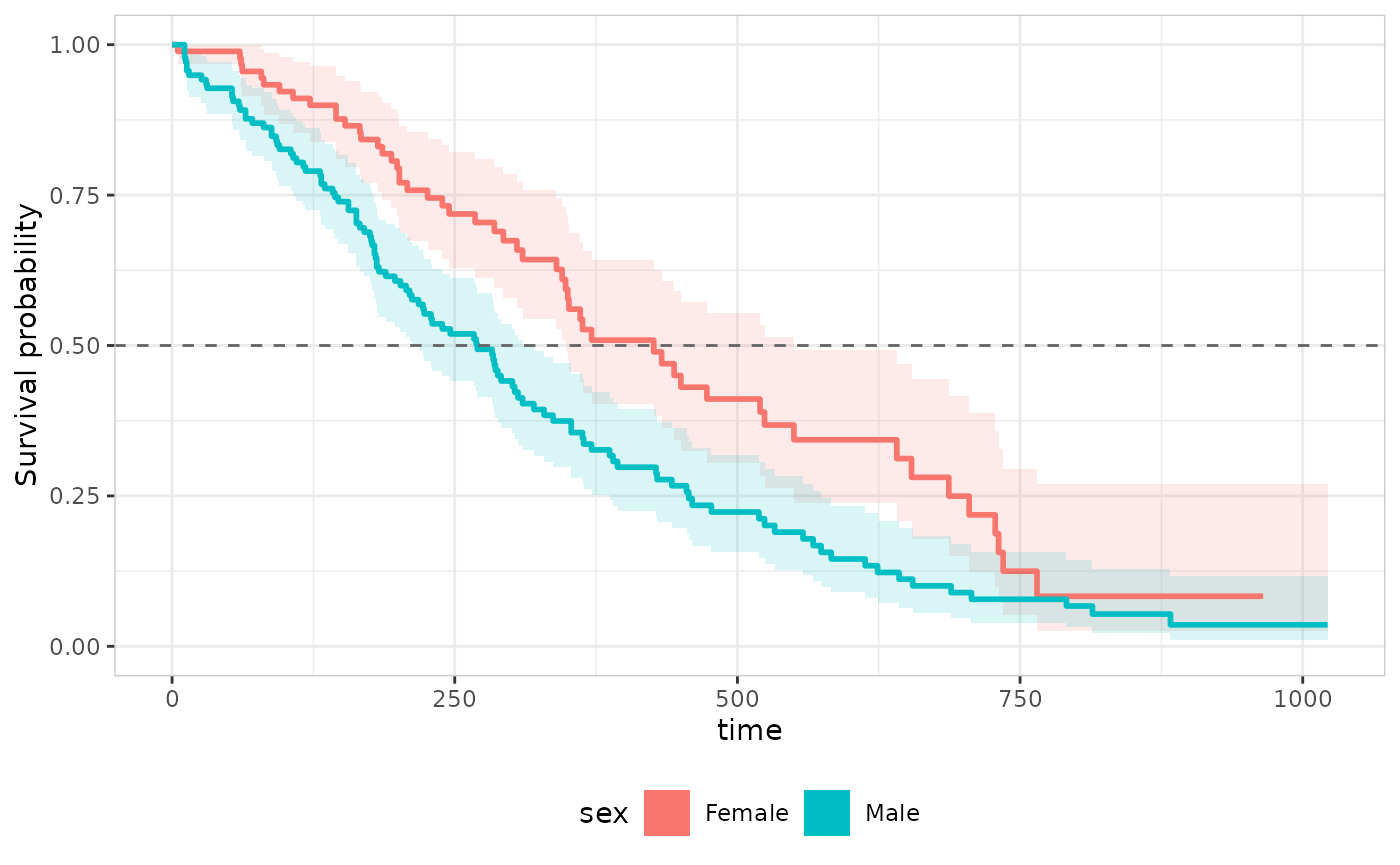

A Kaplan-Meier confidence band is drawn as a series of ggplot2::geom_rect() rectangles (see er_style_tte_curve_km()’s own documentation for why), which makes building one from scratch more work than it’s worth for a small addition like a reference line at 50% survival. Wrapping the built-in curve builder and adding one more geom is the more direct route:

library(survival)

er_style_tte_curve_median <- er_style_tag(
  function(data, config, stratify, time, strata, theme,
           show_ci = TRUE, ribbon_alpha = 0.15, linewidth = 1, ...) {
    geoms <- er_style_tte_curve_km(
      data, config, stratify, time, strata, theme,
      show_ci = show_ci, ribbon_alpha = ribbon_alpha, linewidth = linewidth
    )
    c(geoms, list(
      ggplot2::geom_hline(yintercept = 0.5, linetype = "dashed", color = "grey40")
    ))
  },
  layer = "tte_curve"
)
lung_sex <- lung |> transform(sex = factor(sex, labels = c("Male", "Female")))

lung_sex |>
  er_tte(time, status == 2, stratify_by = sex) |>
  er_tte_add_curve(style = er_style_tte_curve_median) |>
  plot()

The layer tag works identically to er_plot()’s own – the same er_style_tag(fn, layer = ...) mechanism, checked by every er_tte_add_*() function against the layer it was actually called from, just with five more valid values, all prefixed tte_: "tte_curve", "tte_censor", "tte_risktable", "tte_model", and "tte_summary". The tte_ prefix is what lets er_tte_add_model()/er_tte_add_summary() mint their own distinct values rather than colliding with er_plot()’s "plot_model"/"plot_summary", since a TTE builder and an er_plot() builder share neither a signature nor config contents, so a builder written for one grammar should never silently pass the tag check for the other. A builder tagged for the wrong one errors immediately:

lung_sex |>
  er_tte(time, status == 2, stratify_by = sex) |>
  er_tte_add_curve(style = er_style_tte_censor_ticks)
#> Error in `.check_style_layer()`:
#> ! `style` is tagged for the "tte_censor" layer, but was passed to a "tte_curve" layer function.
#> ℹ Use a builder tagged `er_style_tag(fn, layer = "tte_curve")` (or with no `layer` tag at all).

None of er_vpc()’s own extra tags (response_types, plot_by_types, vpc_layout, marker_source) apply to a TTE builder – er_tte() has only one response variable shape (a Surv()-style time/event pair) and one x-axis variable (time, always continuous), so there’s nothing for those tags to distinguish.

See The exposure-response plotting grammar/Implementing the model interface for how er_tte_add_model()’s builder relates to er_predict_survival() specifically.
