Adjust theme/labels for an er_vpc object

Set axis/legend labels, plot titles/captions, axis limits, theme objects, and formatters for a VPC. This does not change which variable is mapped to which aesthetic – that's the builder's job via style (see er_style()).

Usage

er_vpc_theme(
  object,
  xlab = NULL,
  ylab = NULL,
  strata_lab = NULL,
  title = NULL,
  subtitle = NULL,
  caption = NULL,
  xlim = NULL,
  ylim = NULL,
  theme_base = NULL,
  theme_extra = NULL,
  format_percent = NULL,
  format_number = NULL
)

Arguments

object

Partially constructed VPC (has S3 class er_vpc).

xlab

Label for the VPC's x-axis (single string) – see "Details" for why this labels plot_by, not exposure.

ylab

Response axis label (single string).

strata_lab

Facet strip label prefix (single string), e.g. the "Sex" in a "Sex: Female" strip. Errors if stratify_by wasn't set in er_vpc() – there's no facet strip to relabel.

title, subtitle, caption

Plot-level annotation text (single strings).

xlim, ylim

Axis limits (length-2, increasing numeric vectors), applied via ggplot2::coord_cartesian(clip = "off").

theme_base

A ggplot2 theme object (e.g. ggplot2::theme_minimal()) – the swappable overall visual theme, defaulting to ggplot2::theme_bw().

theme_extra

A ggplot2 theme object (e.g. from ggplot2::theme()) with additional theme tweaks layered on top of theme_base. See "Details" for its default and replacement semantics.

format_percent, format_number

Formatter functions (typically from scales::label_*()), used to format the rate/mean displayed in the observed/simulated summaries for a binary response (format_percent) or a continuous/count response (format_number).

Value

The input object, with the requested theme fields updated.

Details

Every argument defaults to NULL, meaning "leave whatever was set before unchanged". This allows repeated calls to er_vpc_theme() to update only the supplied fields, like ggplot2::theme(). There is no implicit way to reset a field to the er_vpc() default.

xlab labels plot_by (stored on object$group$label), not exposure – plot_by drives the VPC's actual x-axis, and the two only coincide when the caller didn't override plot_by in er_vpc().

theme_extra defaults to a panel border plus legend.position = "bottom". Supplying a new value fully replaces this default rather than merging with it, so re-include the border/legend-position settings too if you want to keep them alongside your own additions.

Unlike er_plot_theme(), there is no color_discrete/fill_discrete argument here: the observed-vs-simulated colour/fill distinction uses a fixed, shared scale (see the "Gotchas" section of AGENTS.md) to keep the two aligned across builders that mix colour and fill for the same idea, and swapping it out is not yet supported. Adding + ggplot2::scale_colour_manual(...)/+ ggplot2::scale_fill_manual(...) to the built/returned ggplot2 object remains the escape hatch for this, and for any other tweak not covered by this function's arguments (e.g. draw_key, which isn't wired up for any built-in VPC builder).

See also

er_vpc(), er_style()

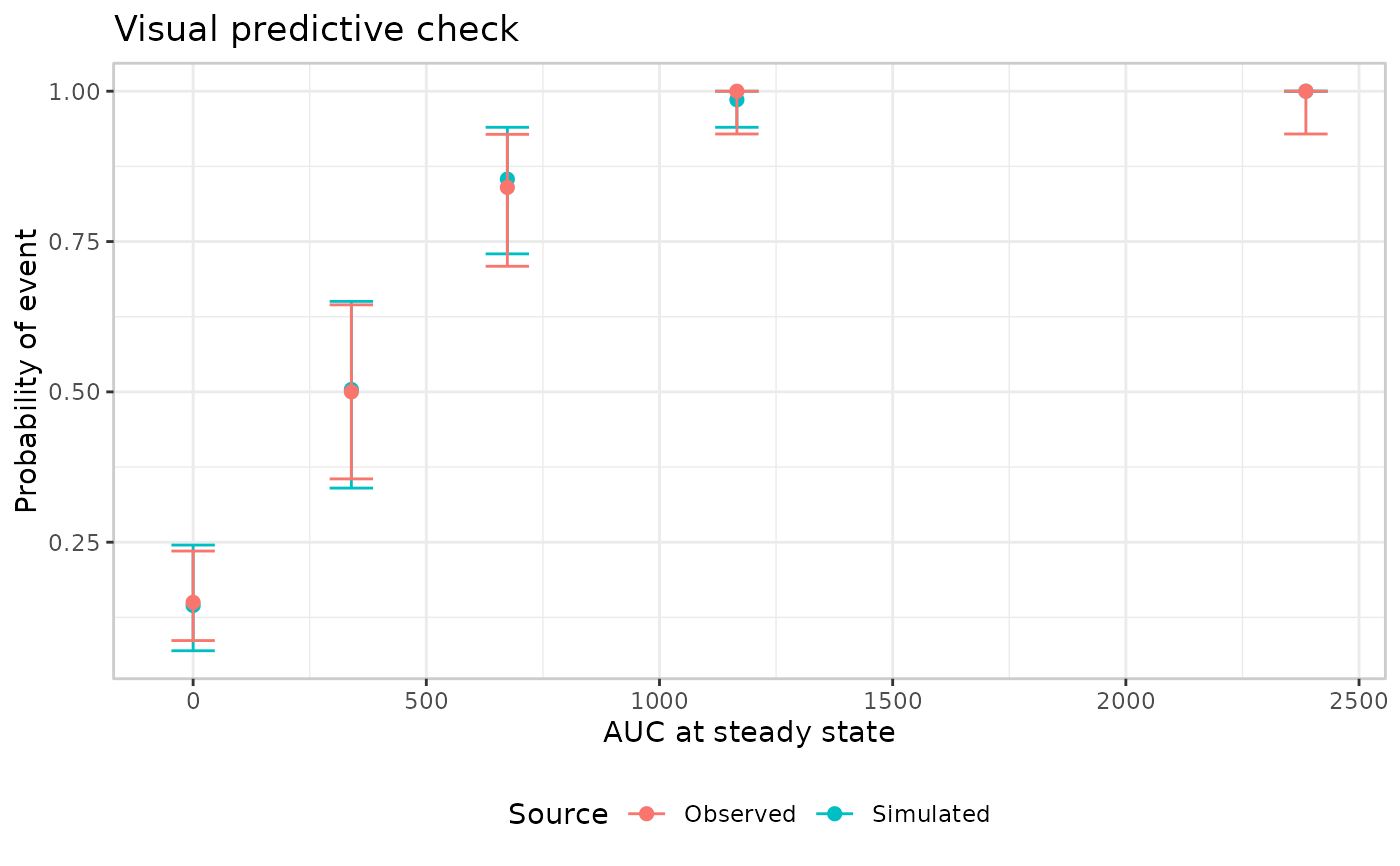

Examples

if (requireNamespace("erglm", quietly = TRUE)) {
  library(erglm)
  mod <- erglm_model(ae1 ~ aucss, erglm_data, family = binomial())

  erglm_data |>
    er_vpc(aucss, ae1) |>
    er_vpc_add_observed() |>
    er_vpc_add_simulated(model = mod, seed = 1234) |>
    er_vpc_theme(
      xlab = "AUC at steady state",
      ylab = "Probability of event",
      title = "Visual predictive check"
    ) |>
    plot()
}
