Getting started with erplots

What erplots is for

An exposure-response plot shows how a response variable relates to a drug exposure variable (Cmax, AUC, and so on). The usual building blocks are a fitted curve with an uncertainty band, some quantile-binned summary points to check the curve against the raw data, the raw data itself, and maybe some side panels showing how exposure is distributed across other variables of interest. erplots gives you a small set of functions for assembling exactly that, layer by layer, in a style that should feel familiar if you’ve used ggplot2’s + to build up a plot.

The one thing erplots deliberately does not do is fit models. You fit a model with whatever tool suits the job – logistic regression, generalised linear models, non-linear least squares, or a package purpose-built for exposure-response modelling – and then hand the fitted object to erplots. As long as that object can produce predictions in the way erplots expects (more on this at the end), the plotting code doesn’t care what kind of model it is.

This vignette works through the pieces one at a time, using erglm, a companion package that fits simple exposure-response models and provides an example dataset, erglm_data. You don’t need erglm to use erplots on your own models, but it’s a convenient way to get a fitted model for these examples.

library(erplots)
library(erglm)

erglm_data has an exposure column, aucss, and several response columns of different kinds: ae1/ae2 are binary (did an adverse event occur?), biomarker_change is continuous, and ae_count is a count. It also has some grouping/stratification columns, sex and treatment. We’ll start with ae1.

(erplots also ships its own simulated example dataset, erplots_data, with multiple exposure columns and one exposure/response pair suited to each of the Emax, logistic, linear, and Poisson regression scenarios – see ?erplots_data.)

mod <- erglm_model(ae1 ~ aucss, erglm_data, family = binomial())

Building a plot, one layer at a time

The empty canvas

Every erplots plot starts with er_plot(), which tells erplots which column is the exposure and which is the response. On its own it doesn’t draw anything – it’s just bookkeeping, the same way ggplot(df, aes(x, y)) doesn’t draw anything until you add a geom:

erglm_data |>
  er_plot(exposure = aucss, response = ae1)
#> <er_plot>
#>   plot variables:
#>     - exposure:        aucss
#>     - response:        ae1
#>     - stratification:  <none>
#>   plot layers: <none>
#>   plots built: <none>
#>   output built: no

In fact, this particular code doesn’t draw anything at all. One point of difference between erplots and ggplot2 is that print() doesn’t render the plot: all it does is print out a summary of your plot specification. If you want to render the plot, you need to explicitly add plot() to the end of your pipeline:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  plot()

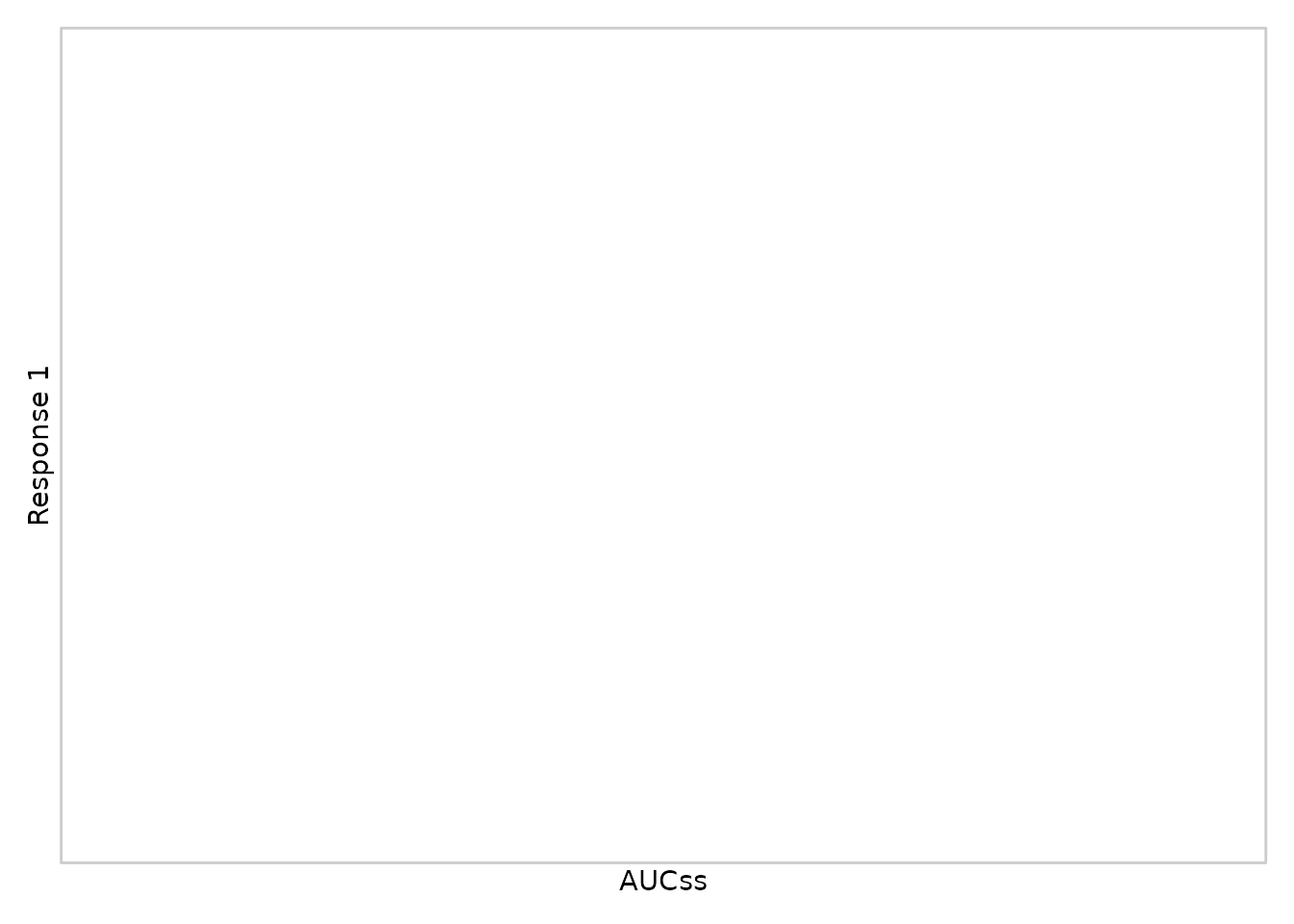

As you can see, at this stage the output is little more than a blank canvas.

Adding the fitted curve

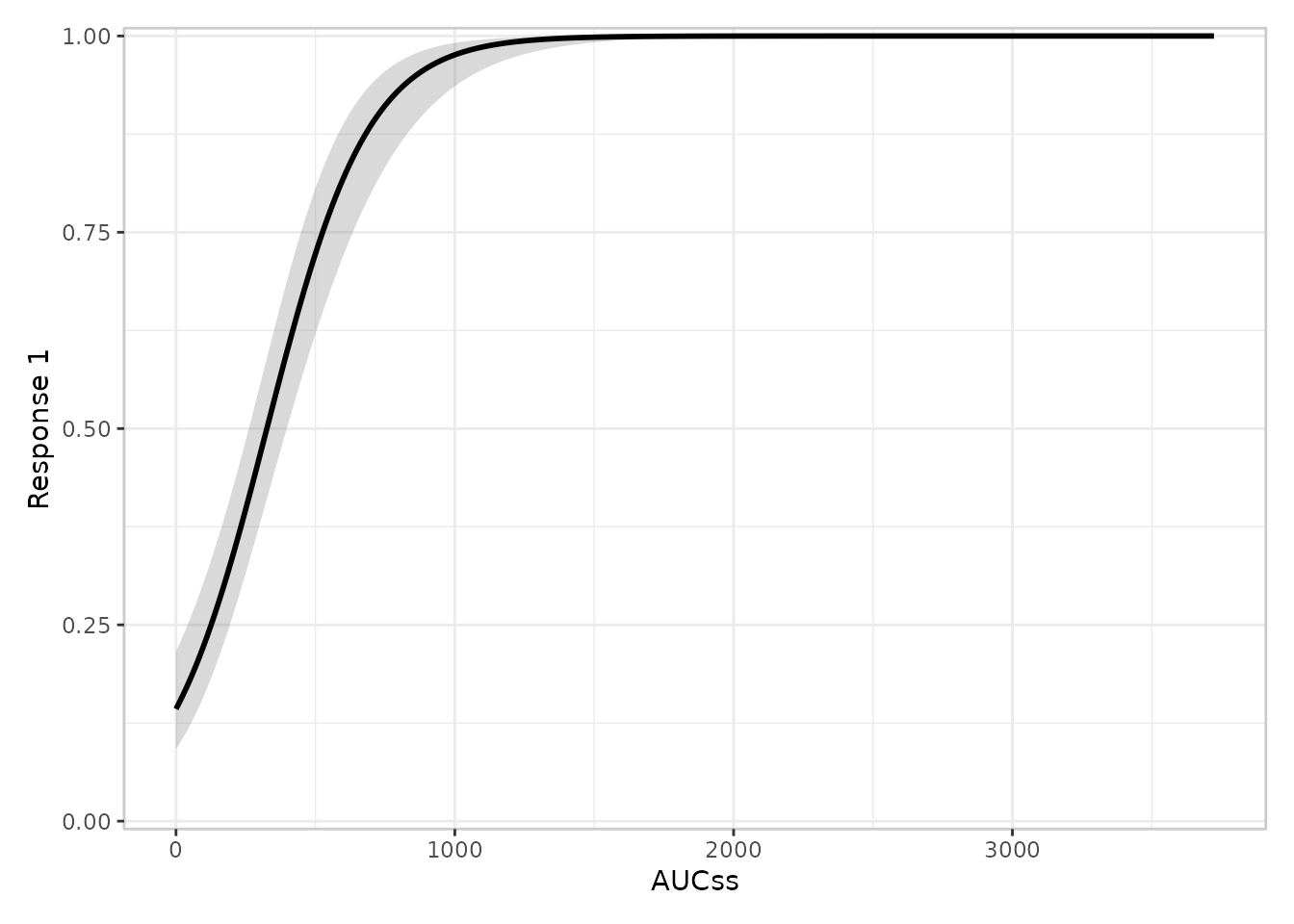

er_plot_add_model() draws the model’s fitted curve, with a confidence ribbon around it. This is where the fitted model you built earlier comes in:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  er_plot_add_model(mod) |>
  plot()

Adding a quantile-binned summary

Fitted curves are easier to trust when you can check them against a simple, model-free summary of the raw data. er_plot_add_quantiles() splits the exposure range into bins of roughly equal size and, within each bin, plots the observed response rate (or mean, for a continuous or count response) with a confidence interval:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  plot()

You can change the number of bins with the bins argument, e.g. er_plot_add_quantiles(bins = 6).

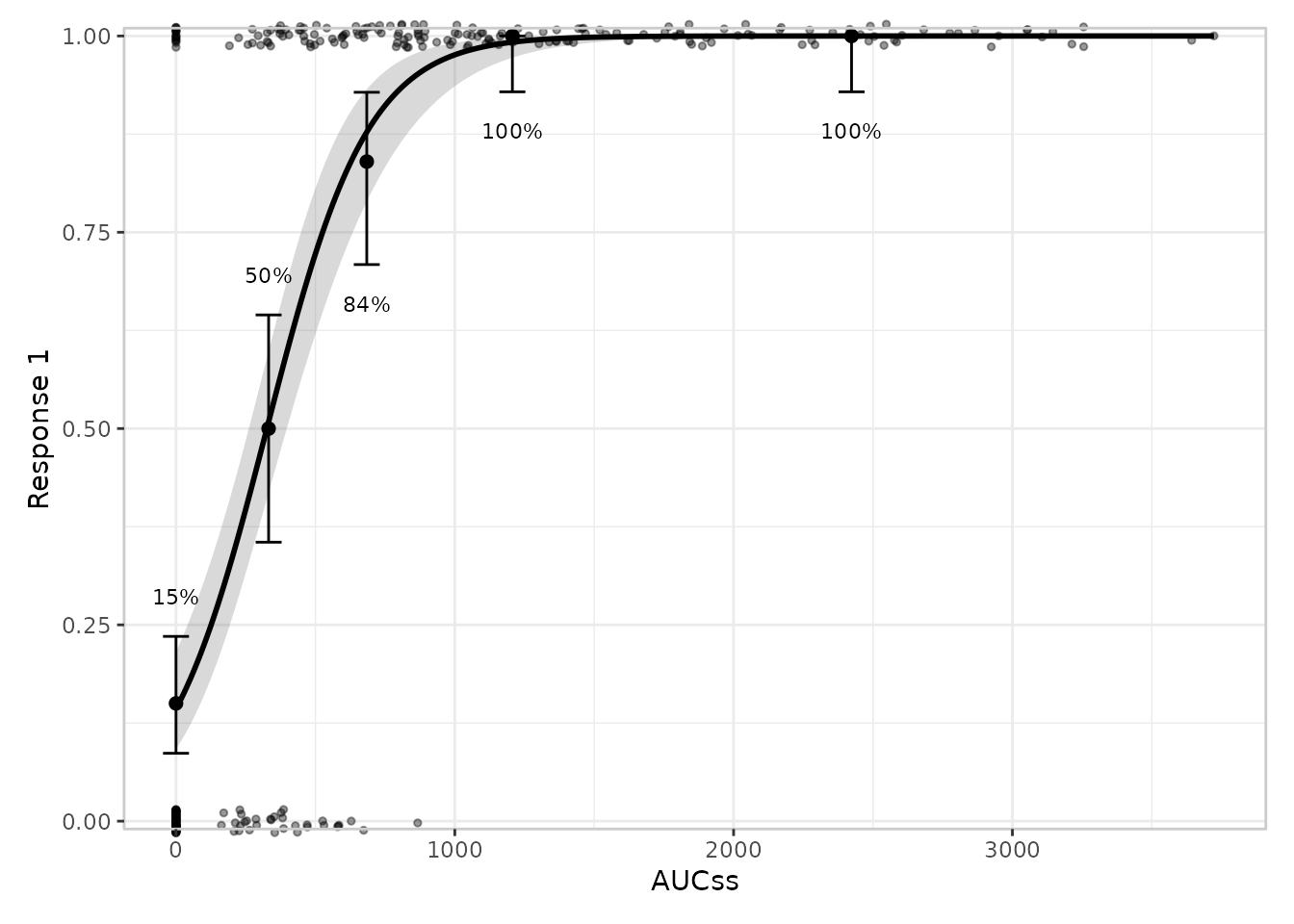

Adding the raw data

er_plot_add_data() overlays the individual observations on top of the curve. For a binary response the points are jittered vertically a little, since the underlying values are exactly 0 or 1 and would otherwise draw as two solid lines:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  plot()

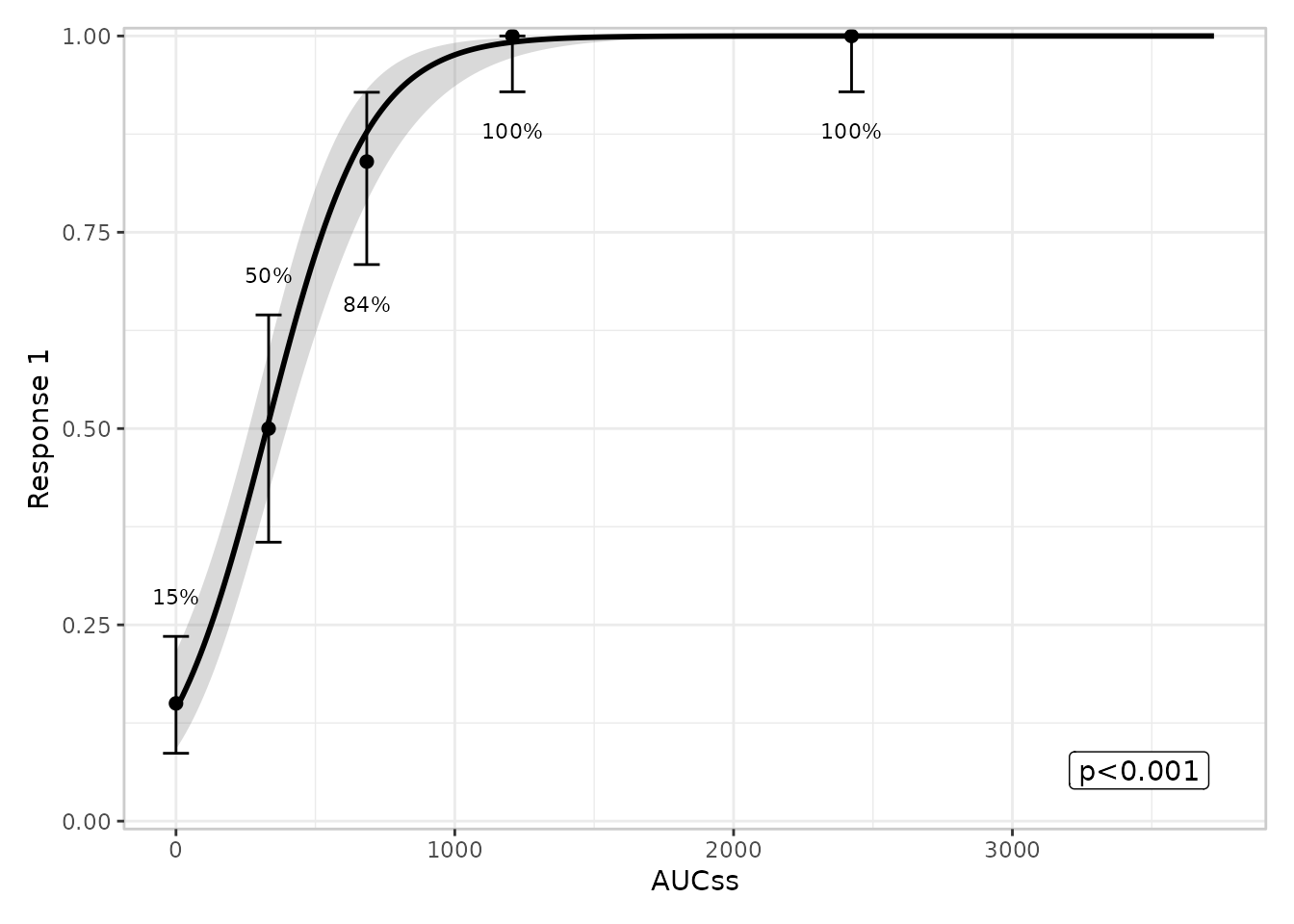

Adding a summary annotation

er_plot_add_summary() places a small text annotation in the corner of the plot that has the least data in it. The default draws the model’s headline p-value, if it has one:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_summary(model = mod) |>
  plot()

Adding grouped exposure panels

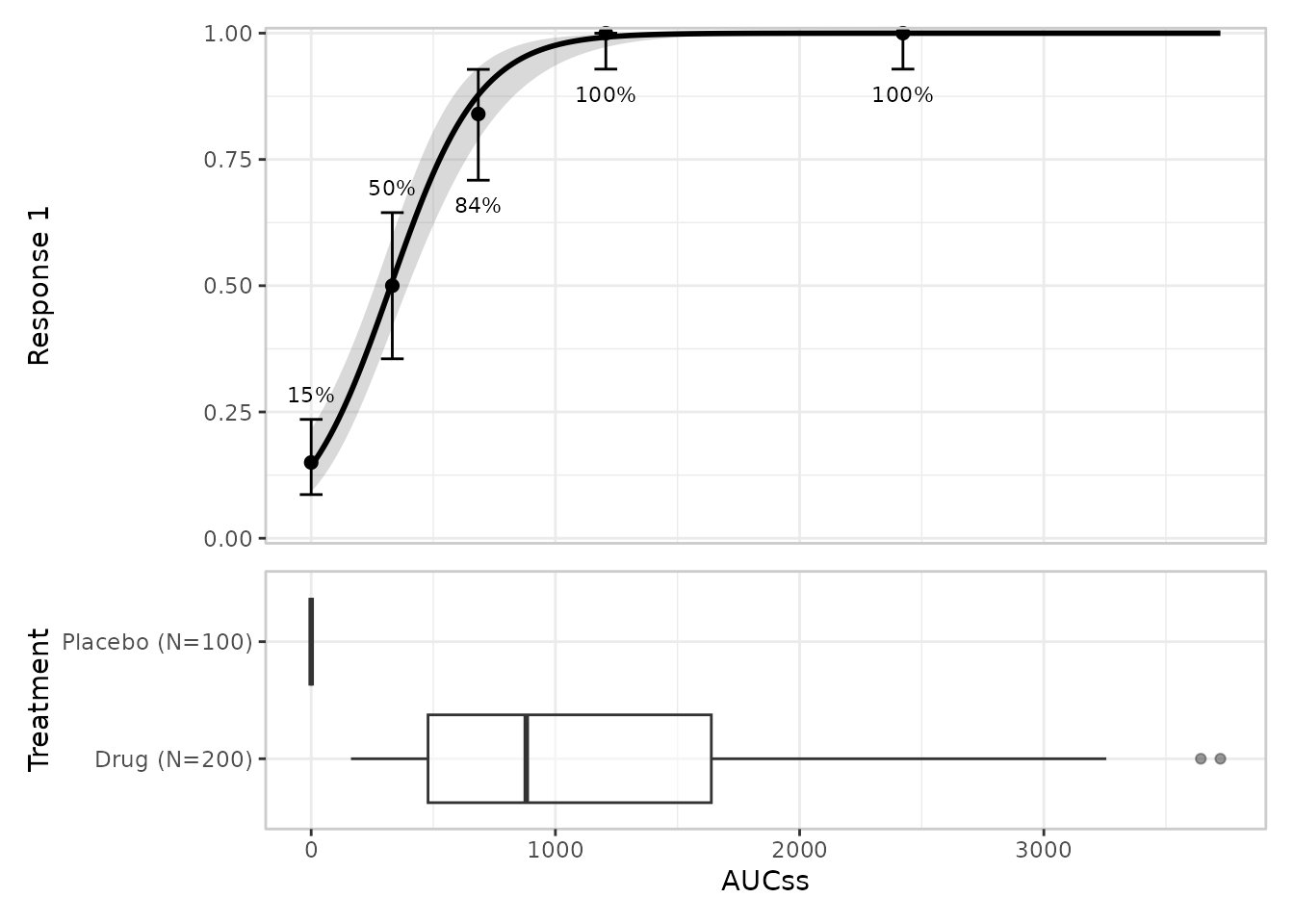

The layers above all describe the response. er_plot_add_groups() instead shows how exposure itself is distributed, split by one or more other variables – useful for checking, say, whether exposure differs by treatment arm. It adds a small boxplot panel below the main plot, and unlike the other layers you can call it more than once to add several panels side by side:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_groups(group_by = treatment) |>
  plot()

Putting it all together

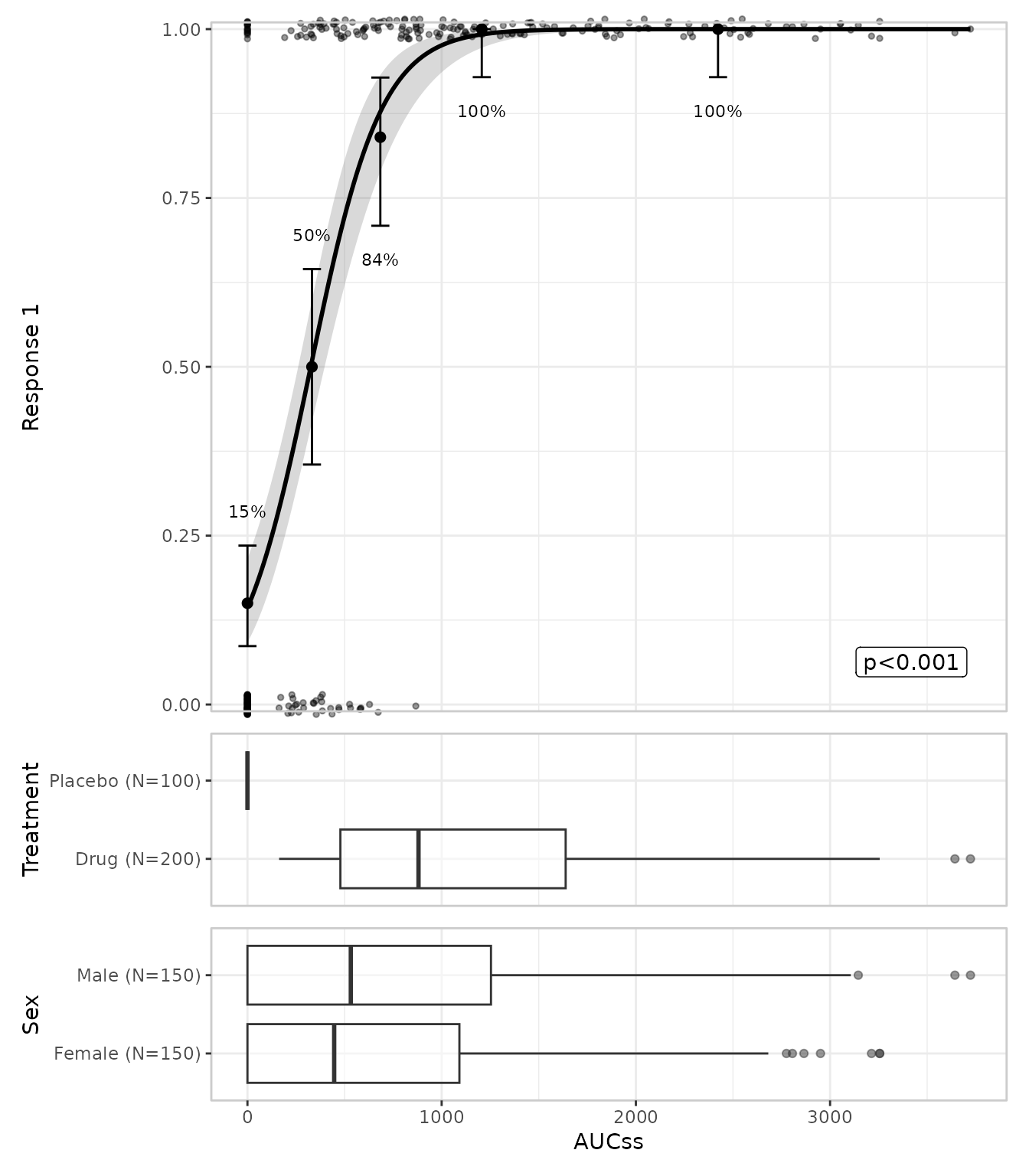

Every layer above is optional, and you can mix and match them in any combination. A fairly complete plot might look like this:

erglm_data |>
  er_plot(exposure = aucss, response = ae1) |>
  er_plot_add_model(mod) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_add_summary(model = mod) |>
  er_plot_add_groups(group_by = c(treatment, sex)) |>
  plot()

Comparing groups with colour

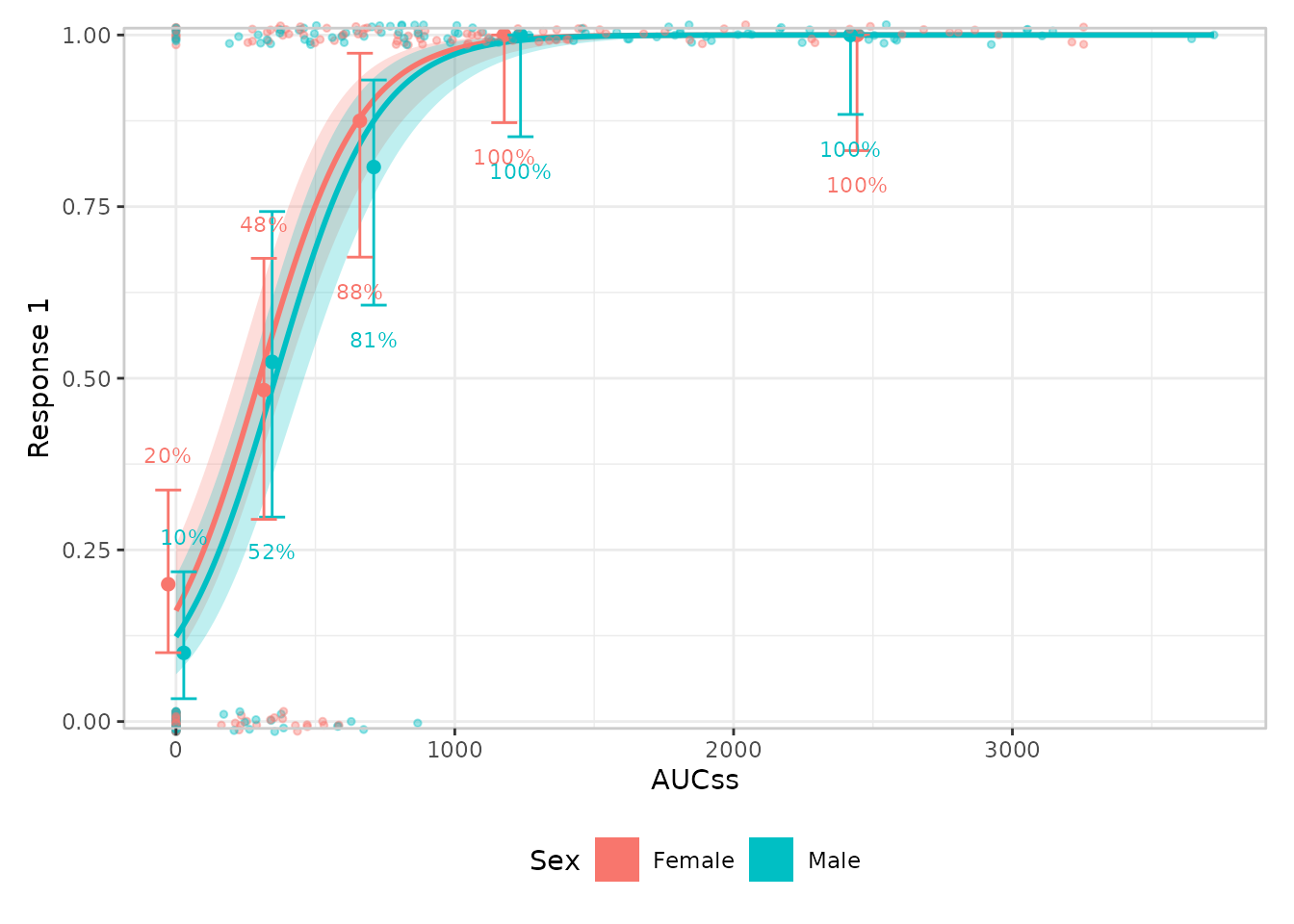

If you’d like to compare, say, two treatment arms on the same plot, pass stratify_by to er_plot(). This adds a colour (and, where relevant, fill) aesthetic to every layer, with one shared legend. Because the curve now needs to differ between groups, the model you pass in should include the stratification variable as a predictor:

mod_strat <- erglm_model(ae1 ~ aucss + sex, erglm_data, family = binomial())

erglm_data |>
  er_plot(exposure = aucss, response = ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  plot()

Continuous and count responses

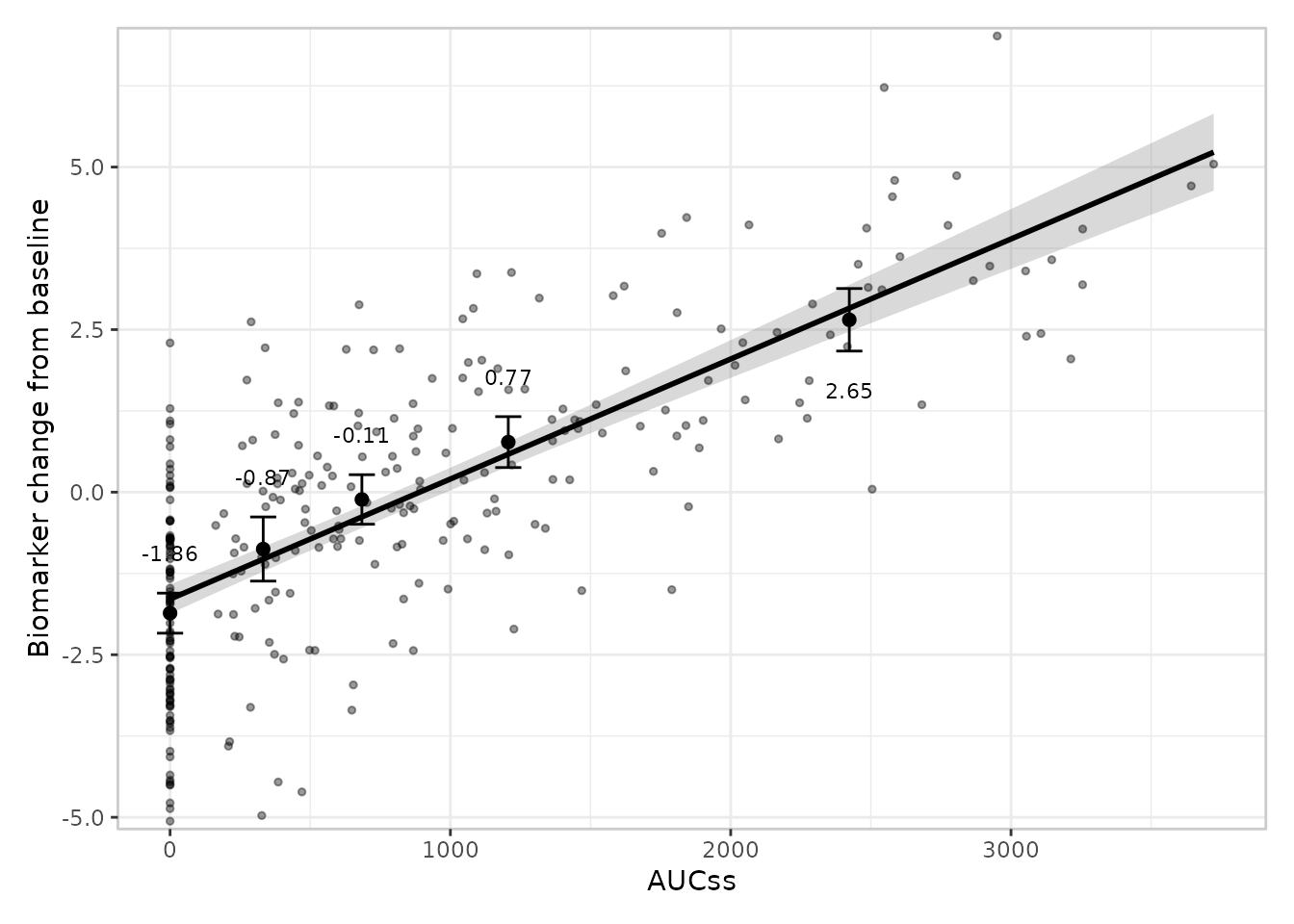

Everything above works the same way for a continuous response (e.g. a change from baseline in some biomarker) or a count response (e.g. the number of adverse events a patient experienced). erplots figures out which kind of response you have from the data, and adjusts the quantile summary accordingly – a mean and interval instead of a rate:

mod_cont <- erglm_model(biomarker_change ~ aucss, erglm_data, family = gaussian())

erglm_data |>
  er_plot(exposure = aucss, response = biomarker_change) |>
  er_plot_add_model(mod_cont) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  plot()

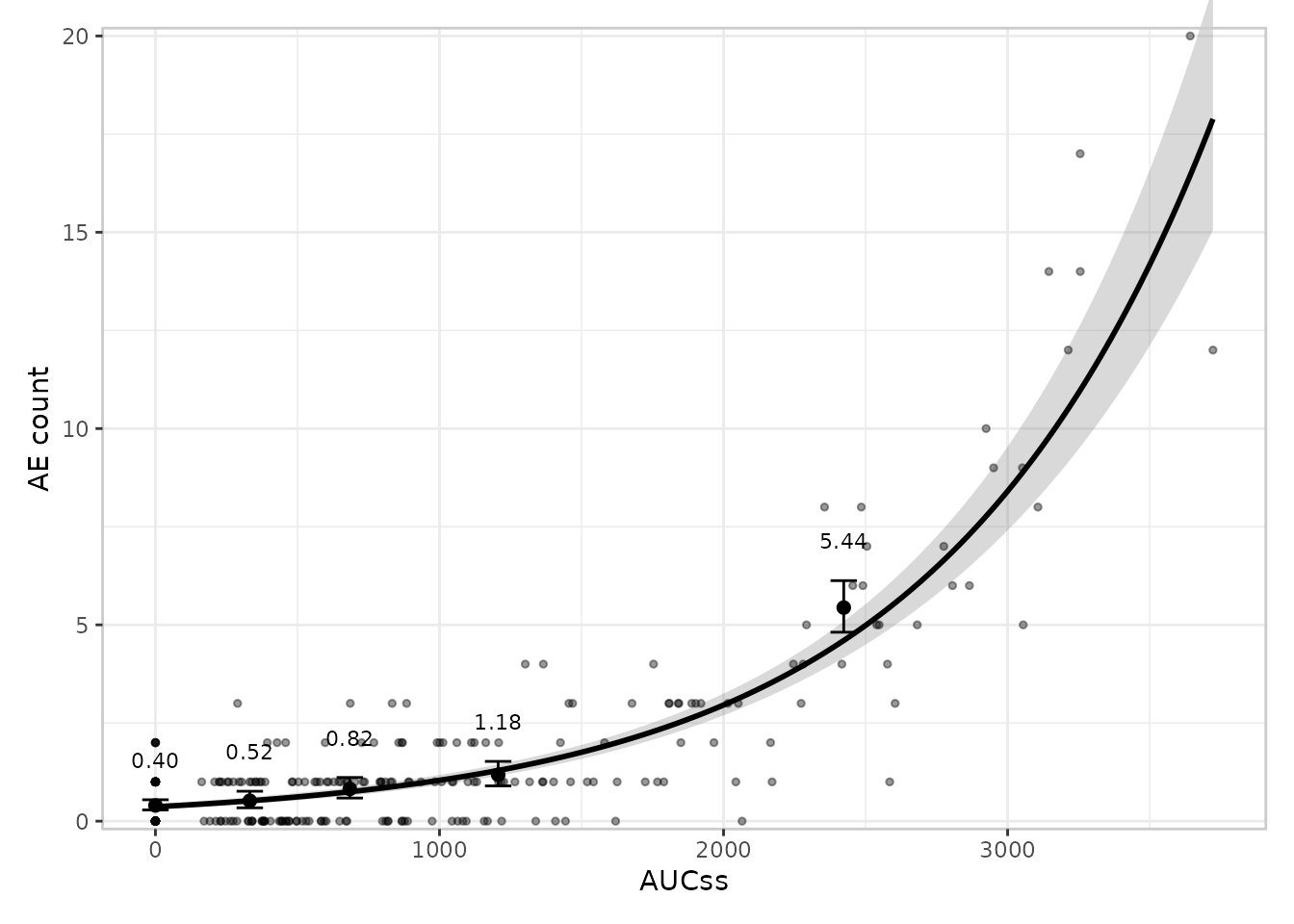

For a genuine count response, it’s worth telling erplots explicitly via response_type = "count", so that it uses an interval designed for counts rather than treating it as an ordinary continuous measurement:

mod_count <- erglm_model(ae_count ~ aucss, erglm_data, family = poisson())

erglm_data |>
  er_plot(exposure = aucss, response = ae_count, response_type = "count") |>
  er_plot_add_model(mod_count) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  plot()

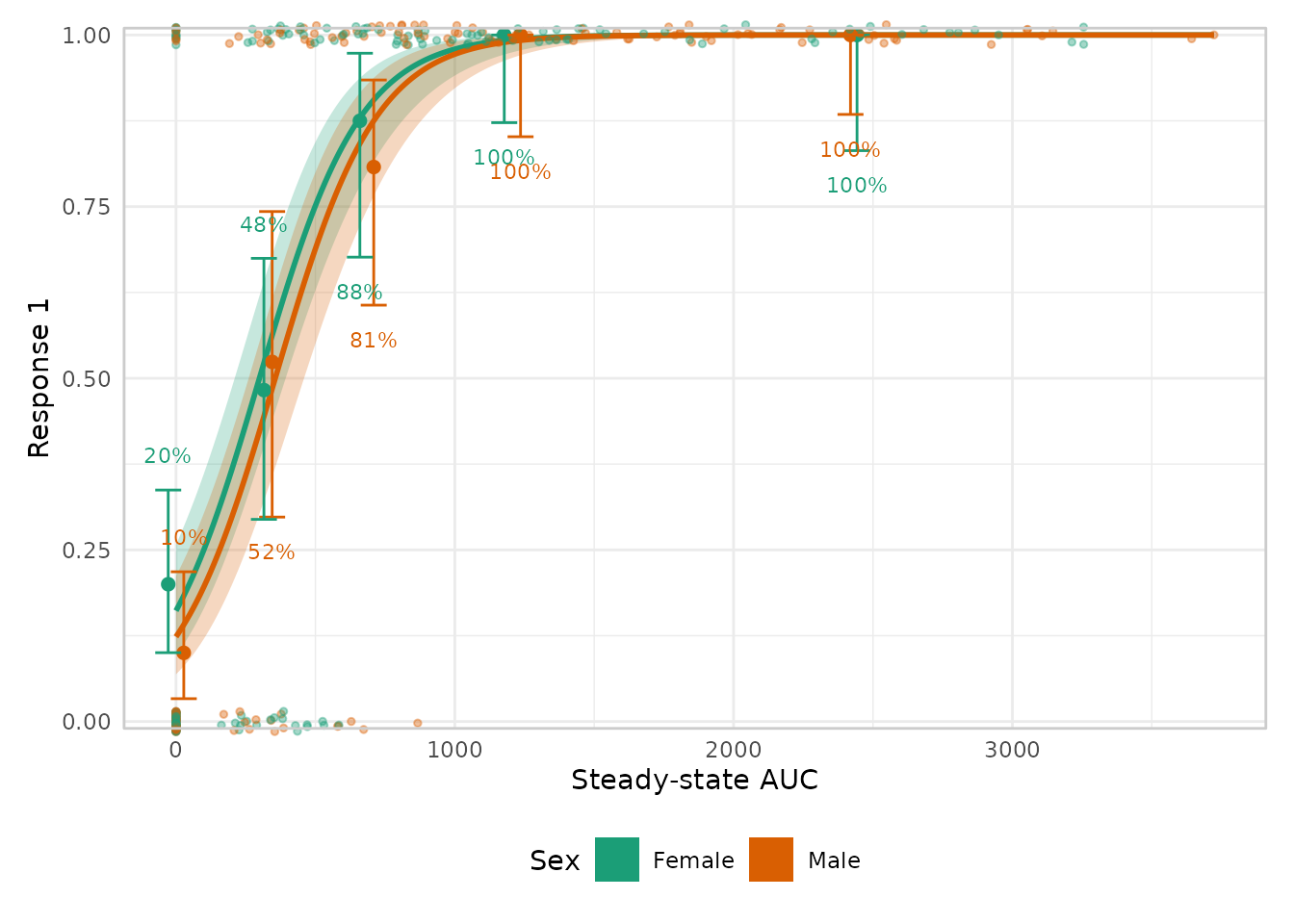

Theming

Everything above changes what’s drawn. er_plot_theme() changes how it looks, without remapping any aesthetic: axis/legend labels, a plot title, axis limits, the overall ggplot2 theme, a discrete colour/fill palette for stratification, and more.

erglm_data |>
  er_plot(exposure = aucss, response = ae1, stratify_by = sex) |>
  er_plot_add_model(mod_strat) |>
  er_plot_add_quantiles() |>
  er_plot_add_data() |>
  er_plot_theme(
    xlab = "Steady-state AUC",
    theme_base = ggplot2::theme_minimal(),
    color_discrete = ggplot2::scale_colour_brewer(palette = "Dark2"),
    fill_discrete = ggplot2::scale_fill_brewer(palette = "Dark2")
  ) |>
  plot()

See Theming erplots for every argument er_plot_theme() supports.

Where to next

This vignette only shows the default look for each layer. Every layer also has one or more alternative styles you can switch to – spaghetti plots instead of a ribbon, violin plots instead of boxplots, a density-style overlay for the raw data when you have a lot of points, and so on – and you can write your own if none of the built-in options fit. The following articles, part of the package website at https://erplots.djnavarro.net/, cover this in more depth:

• Plotting binary responses, plotting continuous responses, and plotting count responses walk through every layer and every built-in style in detail, for each response type.
• The plotting grammar explains the design rules behind the mini-language – which layers can appear more than once, how stratification interacts with each layer, and so on.
• Theming erplots covers every er_plot_theme() argument in detail – labels, limits, the visual theme, the stratification palette, formatters, and panel heights.
• Extending erplots shows how to write your own layer style, and what erplots expects from a model object if you want to plug in one that isn’t erglm.
• Model interface describes the technicalities. It outlines what erplots needs from other packages in order to be able to use its models when drawing exposure-response plots.
