Add a censoring-marks layer

Source: R/er-tte-add.R
er_tte_add_censor.Rd

Adds the censoring layer to a TTE plot, showing the times at which a subject was censored, read from the fit already stored internally within the plot object.

Usage

er_tte_add_censor(object, style = NULL, ...)

Arguments

object

Partially constructed plot (has S3 class er_tte).

style

Style used to draw the censoring marks layer. Can either be a string corresponding to one of the registered style labels (e.g., "ticks", the default), or a builder function used to compute the relevant plot object (see "Styles" below).

...

Additional named arguments forwarded to the style builder function when the plot is built.

Value

The input object, with the censor layer added.

Styles

The following pre-defined styles are available for this layer. Please see the documentation for the corresponding builder function to see what customisation options are available:

LabelBuilderDescription
"ticks"er_style_tte_censor_ticks()Tick marks at each censoring time, on the curve's current step height (the only built-in, and the default).

See er_style_tte() for details on how style builder functions are defined for the TTE mini-grammar, should a custom style be required.

See also

er_tte(), er_style_tte_censor_ticks()

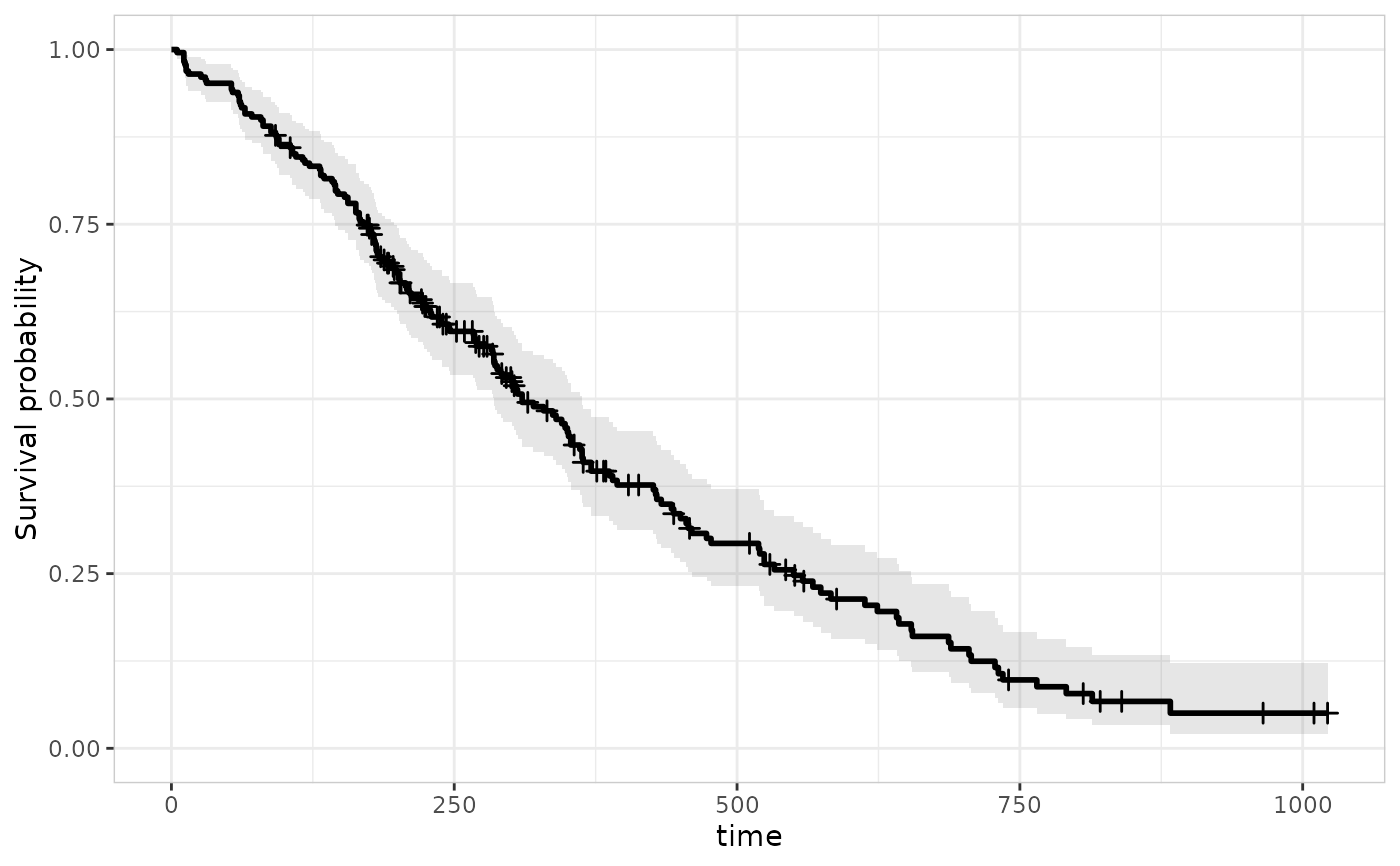

Examples

library(survival)
lung |>
  er_tte(time, status == 2) |>
  er_tte_add_curve() |>
  er_tte_add_censor() |>
  plot()
